Blower Motor Relay: Service and Repair

Blower Motor Relay Replacement

Removal Procedure

1. Disconnect the electrical connectors.

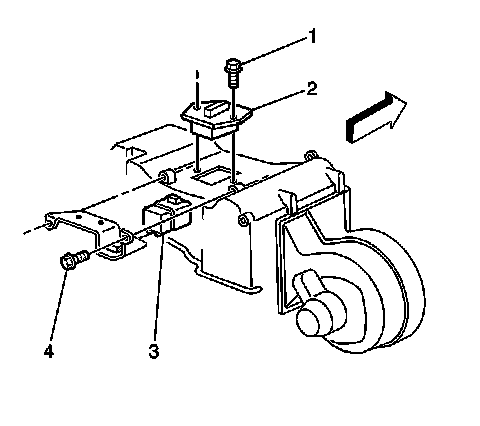

2. Remove the relay (3) from the relay bracket.

Installation Procedure




1. Install the relay (3) to the relay bracket.
2. Connect the electrical connectors.
