Cooling System: Locations

Cooling System Component Views

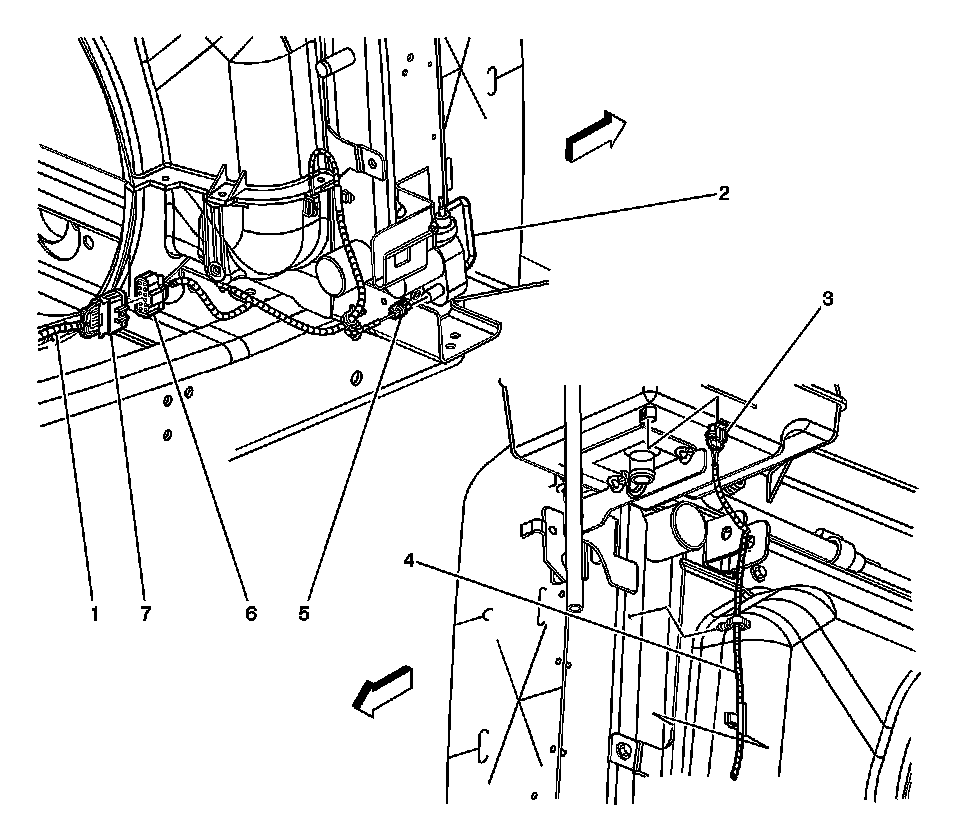

Front of Vehicle




1 - Chassis Harness
2 - Vacuum Pump
3 - Coolant Level Switch Connector
4 - Engine Fan Harness
5 - Vacuum Pump Connector
6 - C126
7 - C126

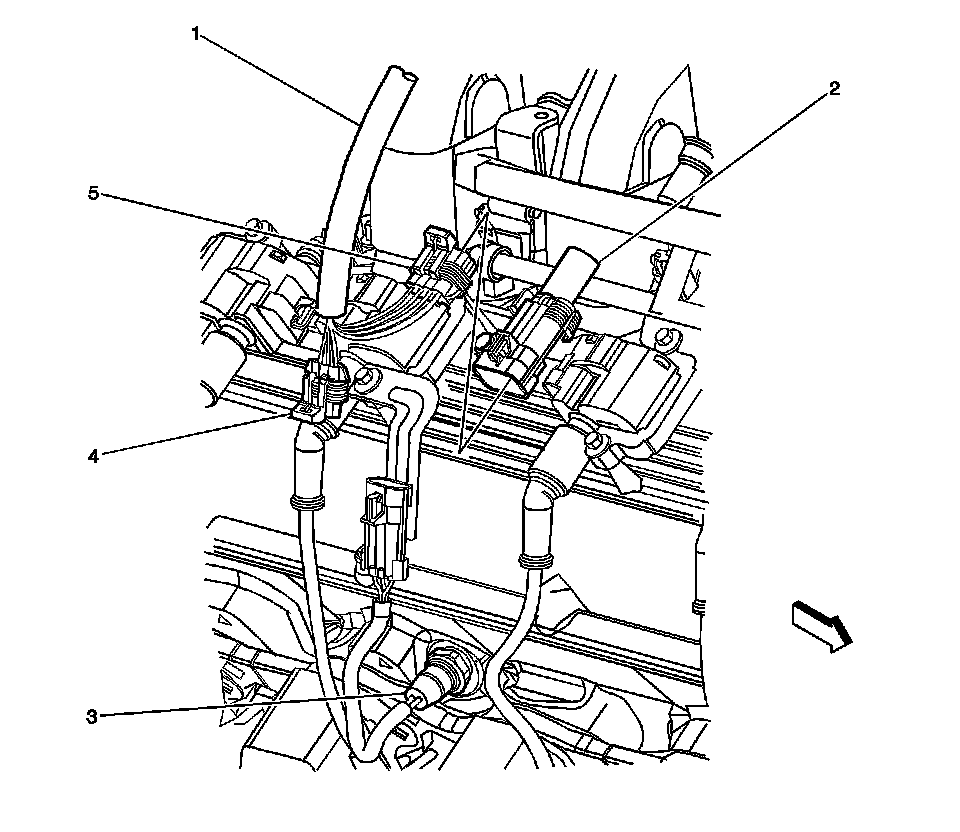

Top of Engine




1 - Engine Harness
2 - C110
3 - Coolant Temperature Sensor
4 - C116
5 - C110
