Front Door Window Regulator: Service and Repair

Window Regulator Replacement - Front Door

Tools Required

J 34940 Rivet Gun

Removal Procedure

The power window motor cannot be serviced. Replace the power window motor as a unit with the regulator.

1. Remove the trim panel.
2. Remove the water deflector.
3. Remove the inner mounting panel assembly.

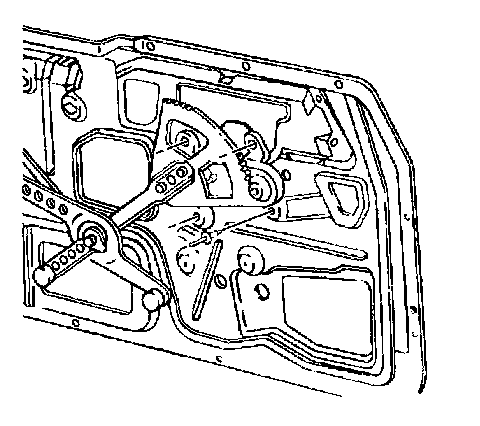

4. Drill out the front and rear rivets securing the regulator to the door inner panel.
5. Remove the regulator from the inner panel.

Installation Procedure




1. Install the regulator to the inner panel.
2. Using the J 34940, install the rivets securing the regulator to the door inner panel.
3. Install the inner mounting panel assembly.
4. Install the water deflector.
5. Install the trim panel.
