Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>

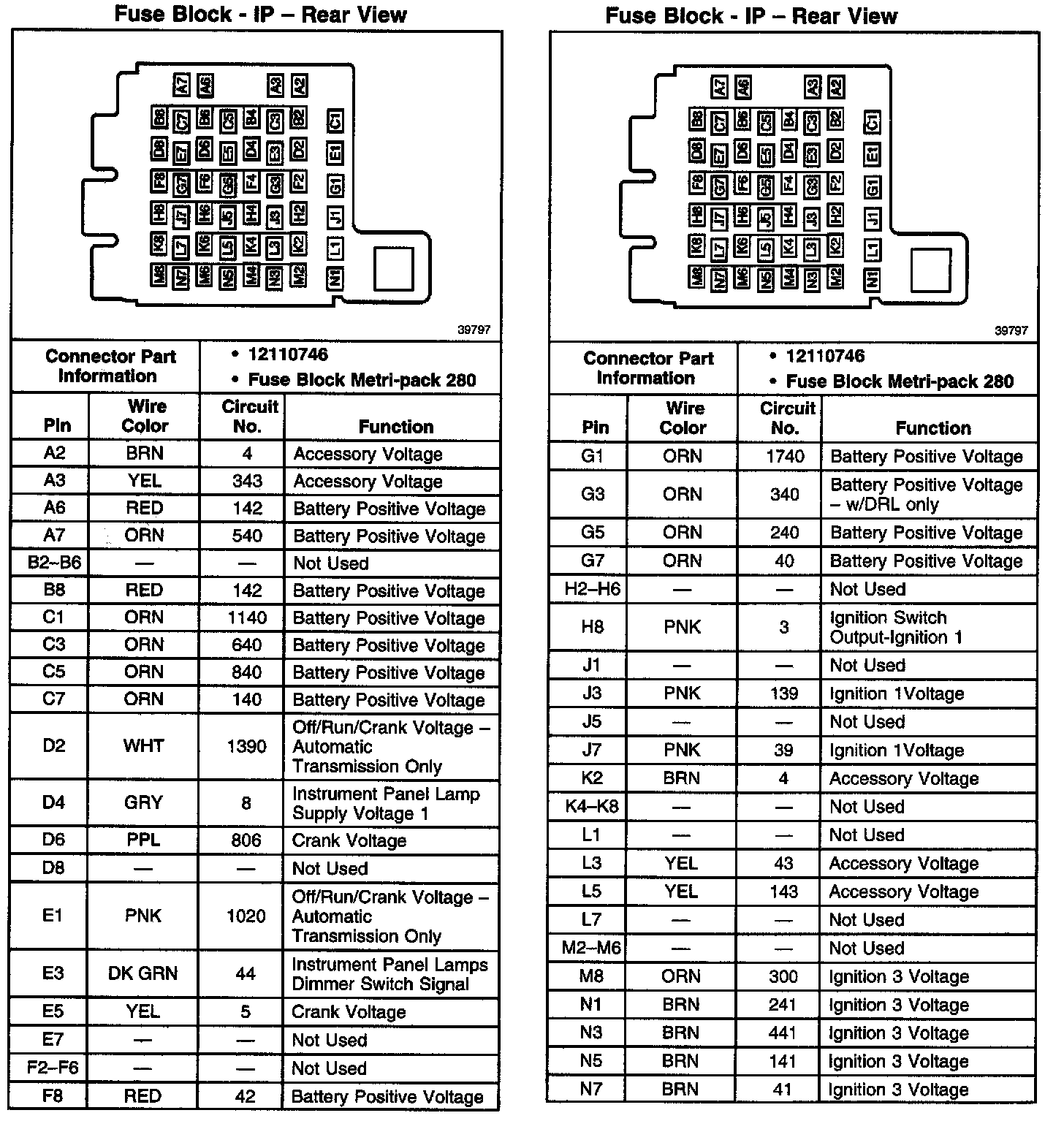

Fuse Block - IP - Rear View
Fuse Block - IP - Rear View
Fuse Block - IP - Rear View:
