Generator Bracket Replacement - Auxiliary

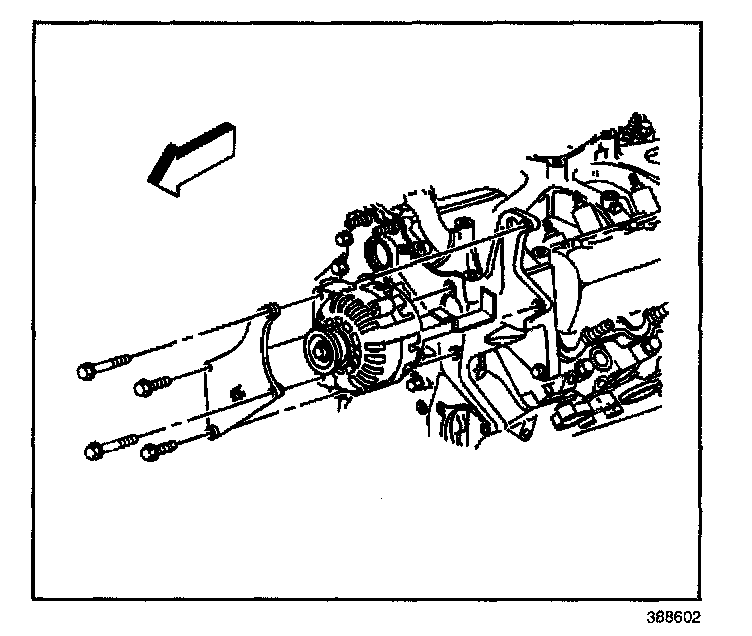

REMOVAL PROCEDURE




1. Remove the auxiliary generator.
2. Remove the auxiliary generator bracket bolts.
3. Remove the auxiliary generator bracket.

INSTALLATION PROCEDURE




1. Install the auxiliary generator bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the auxiliary generator bracket bolts.

Tighten
Tighten the auxiliary generator bracket bolts to 41 N.m (30 lb ft).

3. Install the auxiliary generator.
