Generator Brace Replacement - Auxiliary

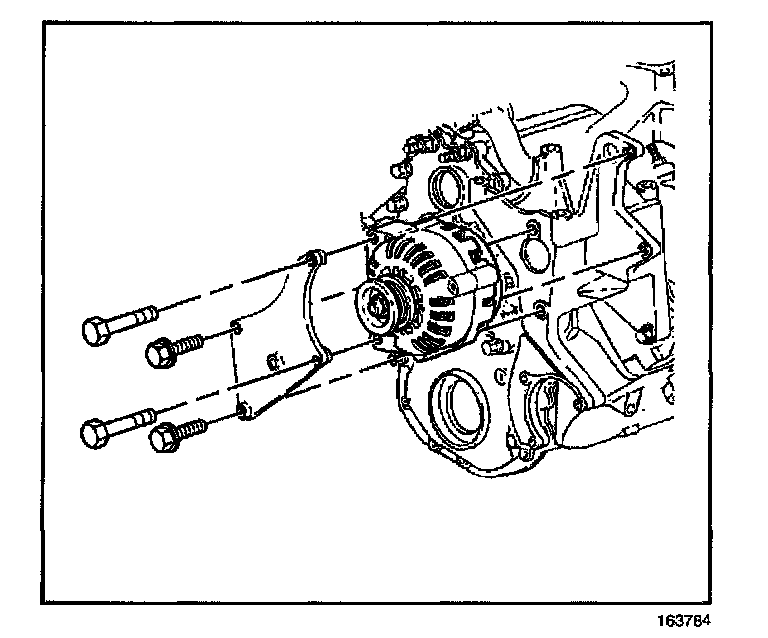

REMOVAL PROCEDURE




1. Remove the drive belt.
2. Remove the generator mounting bolts from the brace.
3. Remove the generator brace bolts.
4. Remove the brace.

INSTALLATION PROCEDURE

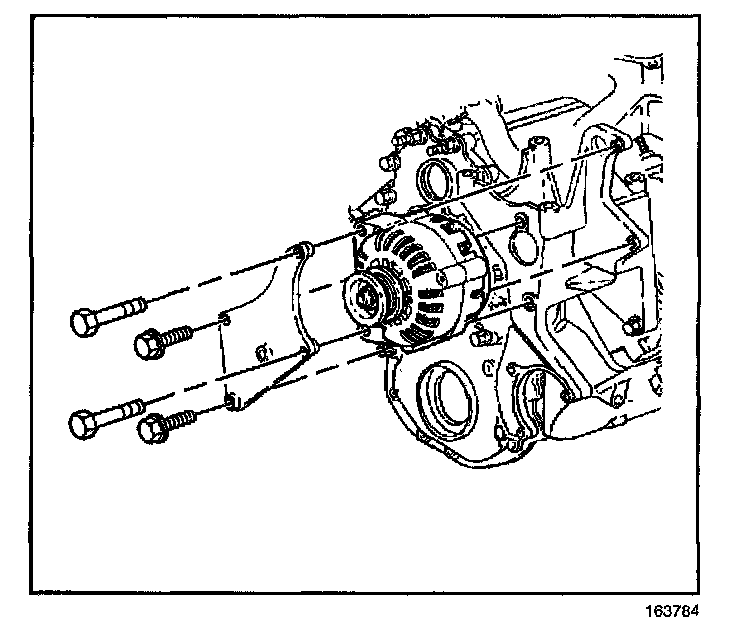

1. Install the brace.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the generator mounting bolts and brace bolts to the brace.

Tighten
- Tighten the auxiliary generator mounting long bolts to 50 N.m (37 lb ft).
Tightening specifications include bolts for right mounted brace.
- Tighten the auxiliary generator mounting short bolts to 25 N.m (18 lb ft).

3. Install the drive belt.
