Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Connector Views
Connector Views

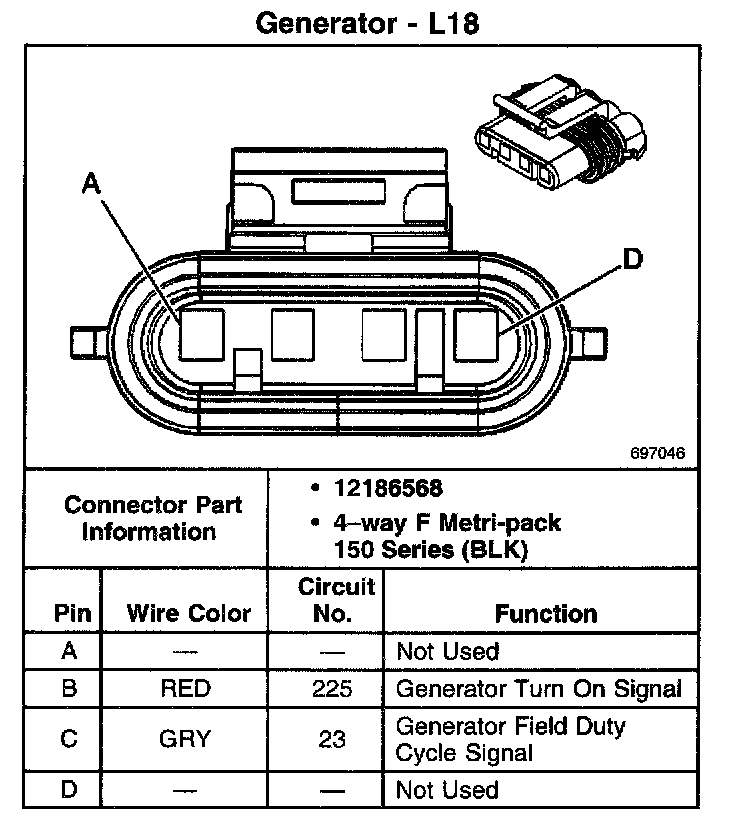

Generator - L18:
