Battery Negative Cable Replacement - Auxiliary

REMOVAL PROCEDURE




1. Remove the auxiliary battery.
2. Remove the forward lamp wiring harness ground bolt at the radiator support.

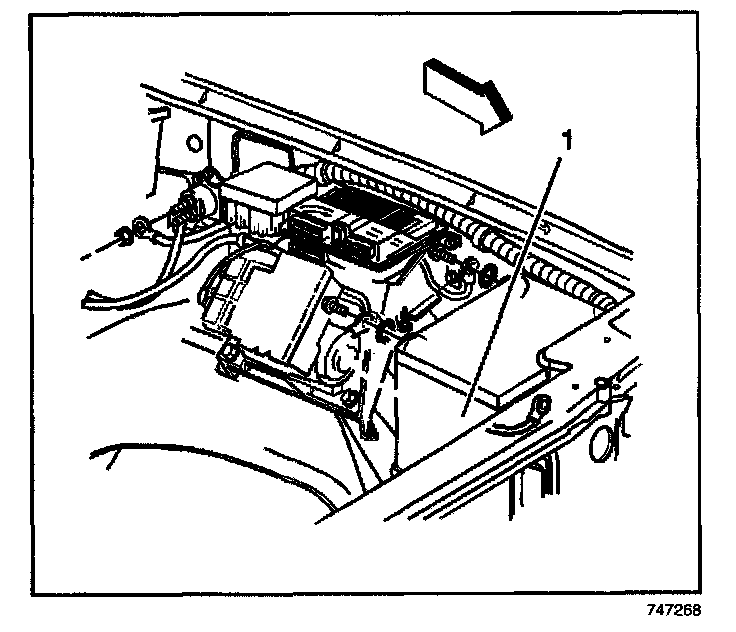

3. Remove the auxiliary negative battery cable (1).

INSTALLATION PROCEDURE

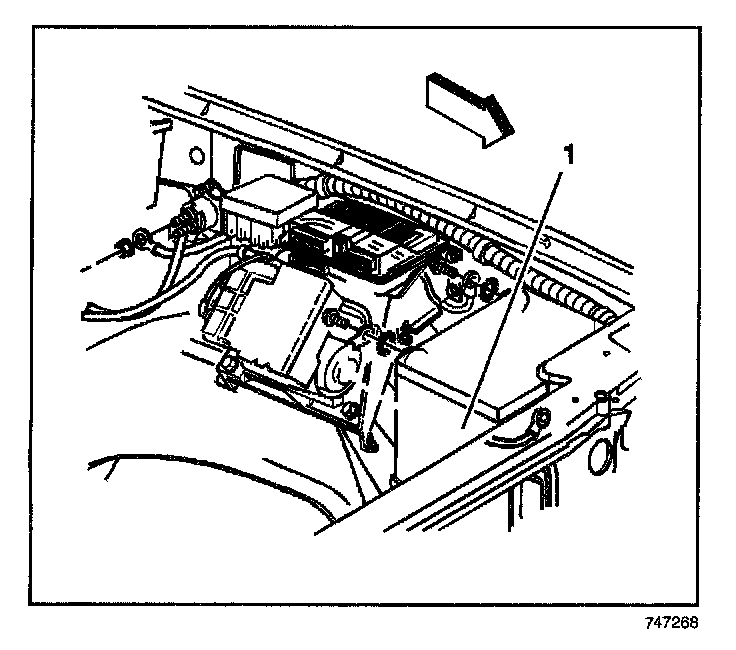

1. Install the auxiliary negative battery cable (1).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the forward lamp wiring harness ground bolt at the radiator support.

Tighten
Tighten the forward lamp wiring harness ground bolt to 6 N.m (53 lb in).

3. Install the auxiliary battery.
