Home >> Chevy Truck >> 2002 >> C 3500 HD Truck 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Ignition Controls >> Ignition Control, Bank 1 (Left Side)

Ignition Control, Bank 1 (Left Side)

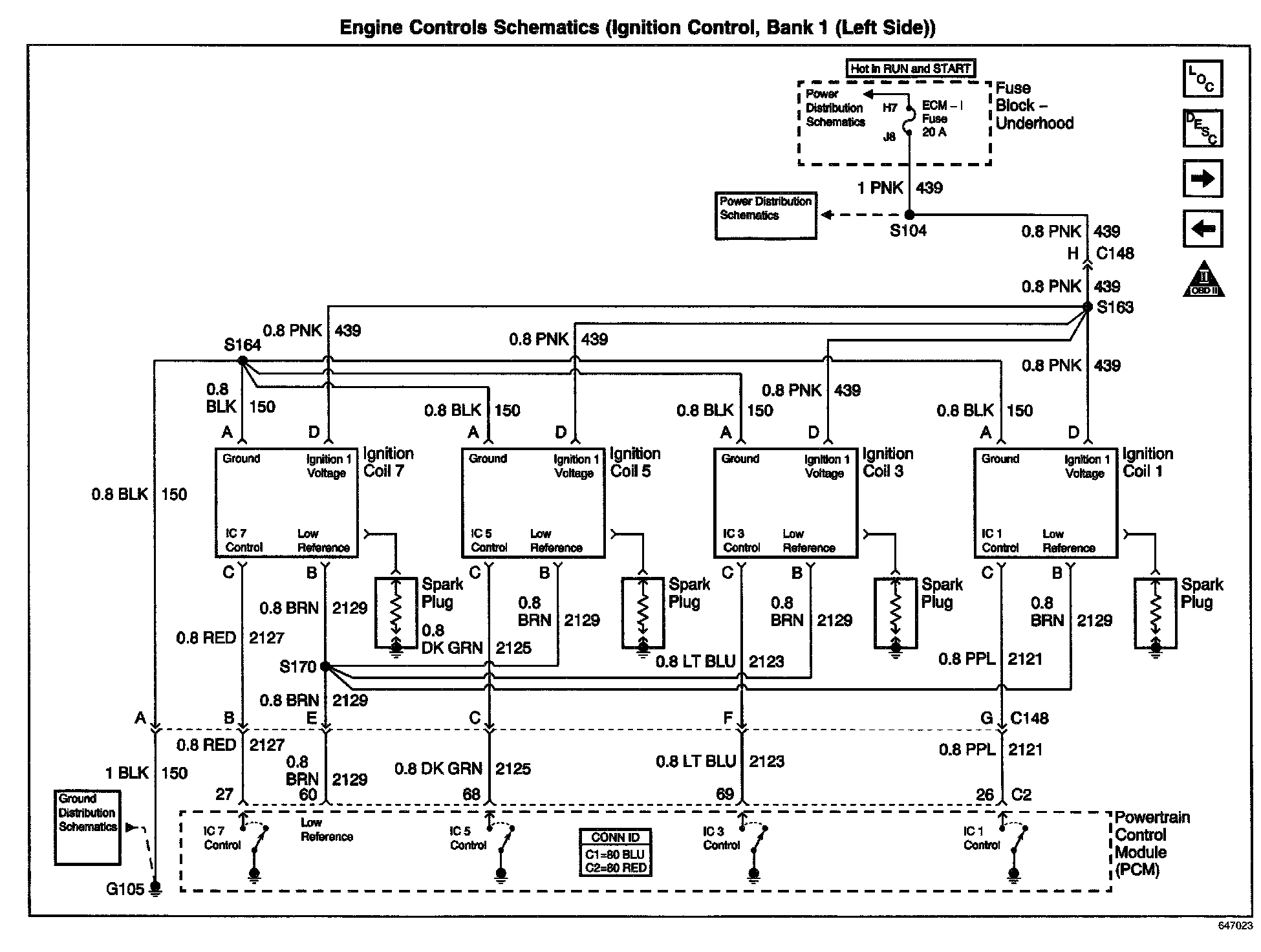

Engine Controls Schematics: Ignition Control, Bank 1 (Left Side):
