High Pressure Sensor / Switch: Diagrams

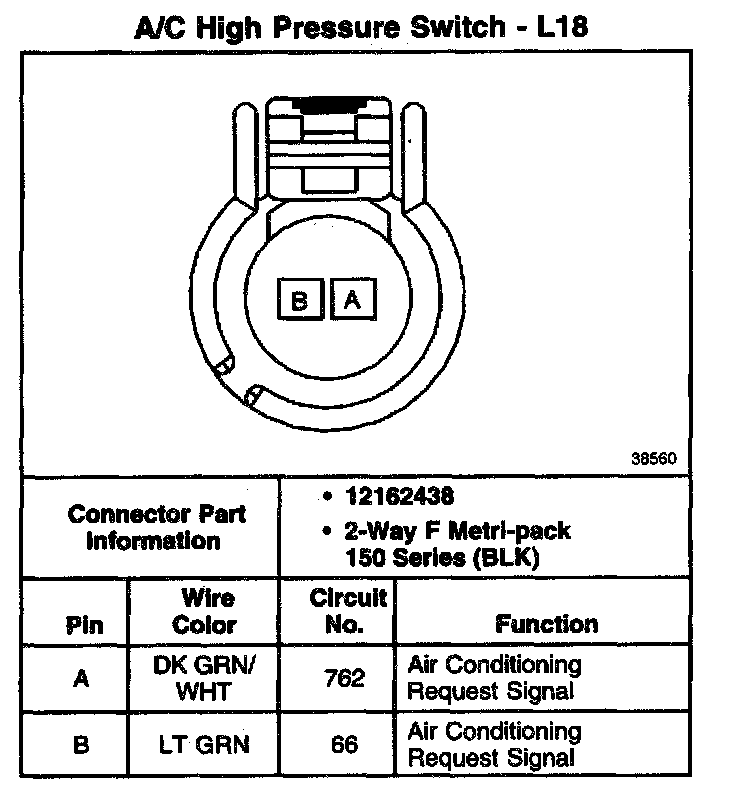

A/C High Pressure Switch - L18 - HVAC Systems - Manual:

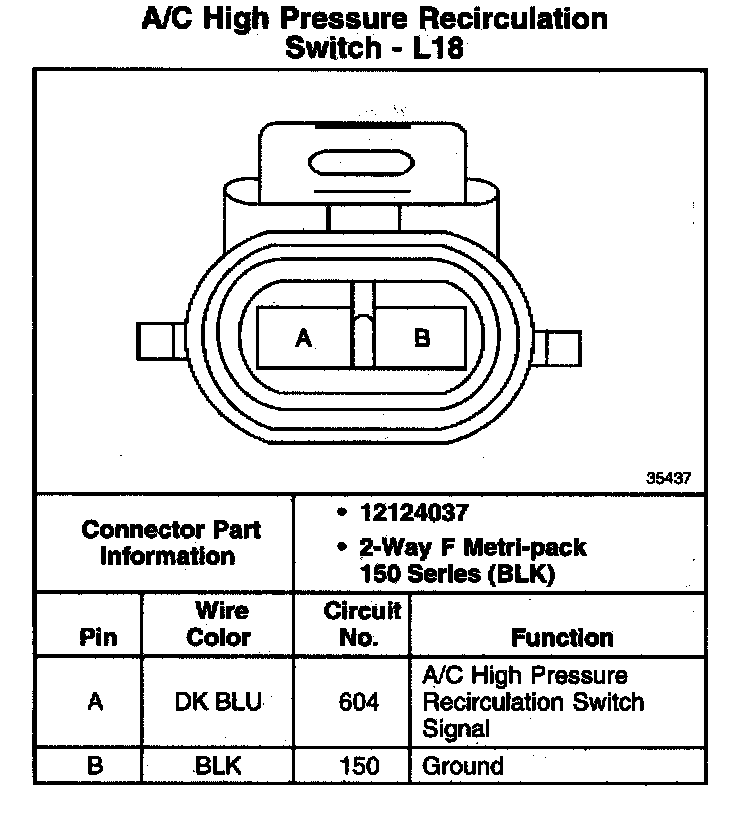

A/C High Pressure Recirculation Switch - L18 - HVAC Systems - Manual:
