Evaporator Core: Service and Repair
EVAPORATOR CORE REPLACEMENTREMOVAL PROCEDURE
- Remove the HVAC module. Service and Repair
1. Remove the heater core from the HVAC module.

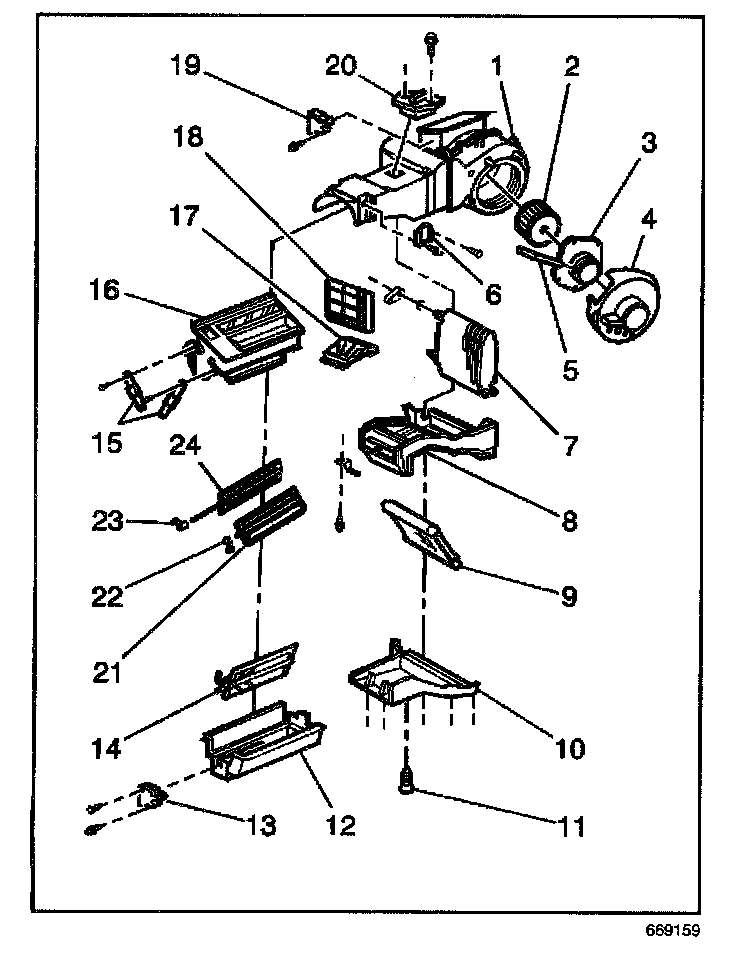

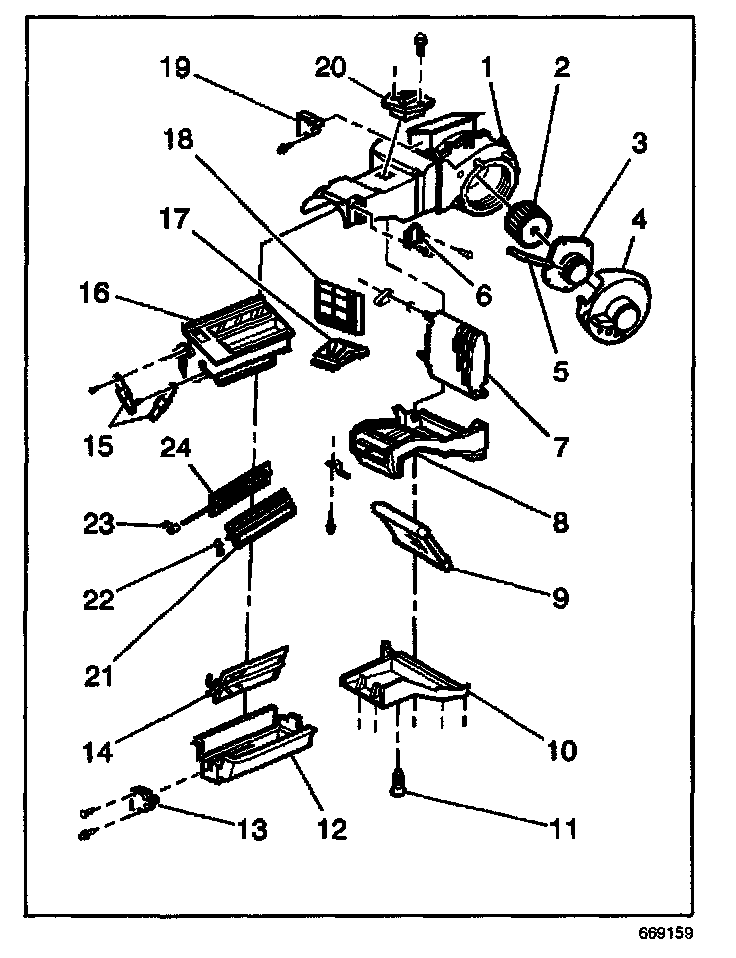

2. Remove the four screws in order to remove the evaporator case cover (8) from the HVAC module assembly.
3. Remove the evaporator core (7) from the HVAC module.
INSTALLATION PROCEDURE
1. Install the evaporator core (7) to the HVAC module.
2. Install the evaporator case cover (8).
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the screws to the evaporator case cover (8).
Tighten
Tighten the screws to 1.4 N.m (12 lb in).
4. Install the heater core.
5. Evacuate and recharge the system. Refer to Refrigerant Recovery and Recharging.
6. Leak test the fittings of the component using the J 39400-A.
