Blower Motor Resistor: Service and Repair
BLOWER MOTOR RESISTOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the instrument panel.

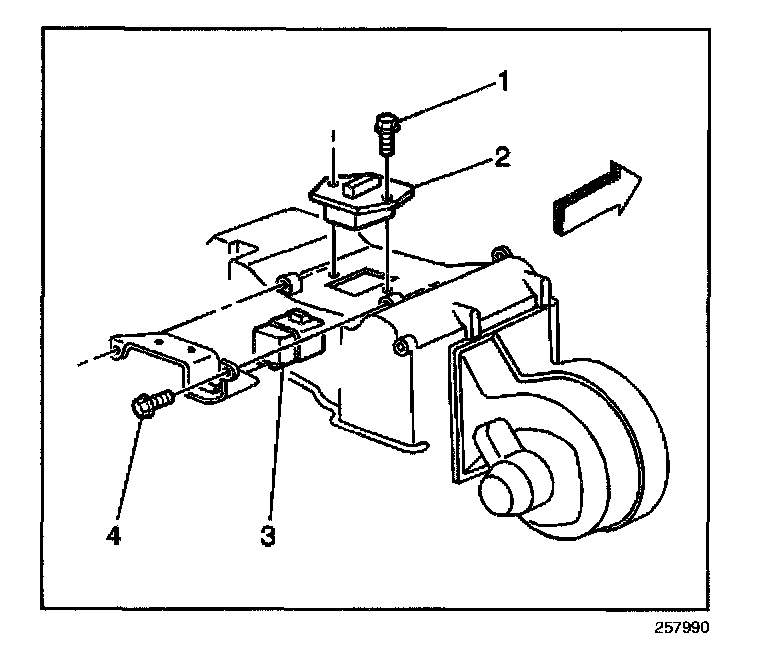

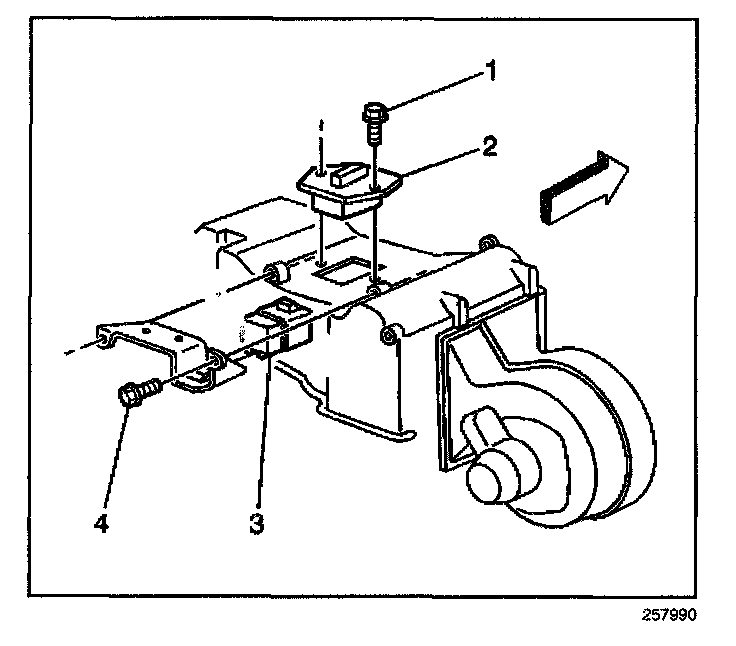

2. Disconnect the electrical connector from the blower motor resister (2).
3. Remove the screws (1) from the blower motor resistor (2).
4. Remove the blower motor resistor (2).
INSTALLATION PROCEDURE
1. Install the blower motor resistor (2).
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the screws (1) to the blower motor resistor (2).
Tighten
Tighten the screws to 1.4 N.m (12 lb in).
3. Connect the electrical connector to the blower motor resistor (2).
4. Install the instrument panel.
