Air Distributor Duct Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel.

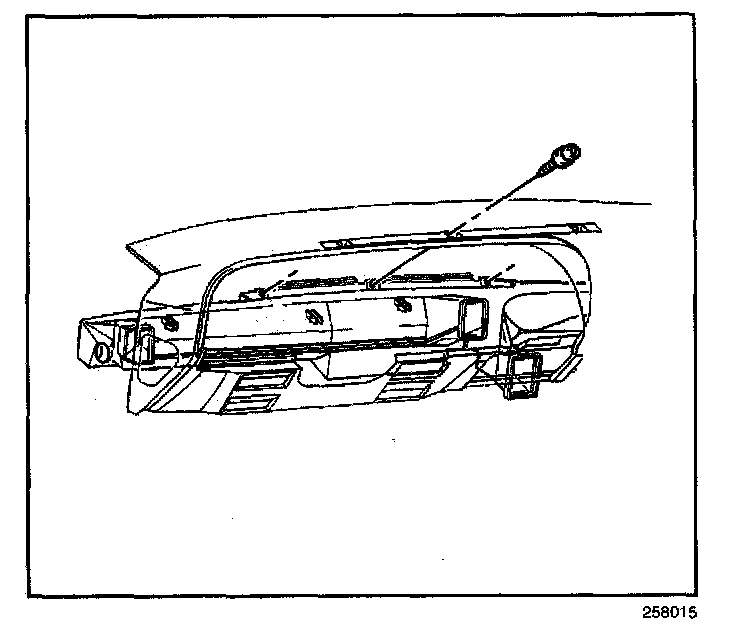

2. Remove the air distributor duct mounting screws.
3. Remove the air distributor duct from the instrument panel.

INSTALLATION PROCEDURE




1. Install the air distributor duct to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the air distributor duct mounting screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Install the instrument panel bezel.
