Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Controls
>>
Fuel Pump Controls
>>
With Single Tank
With Single Tank

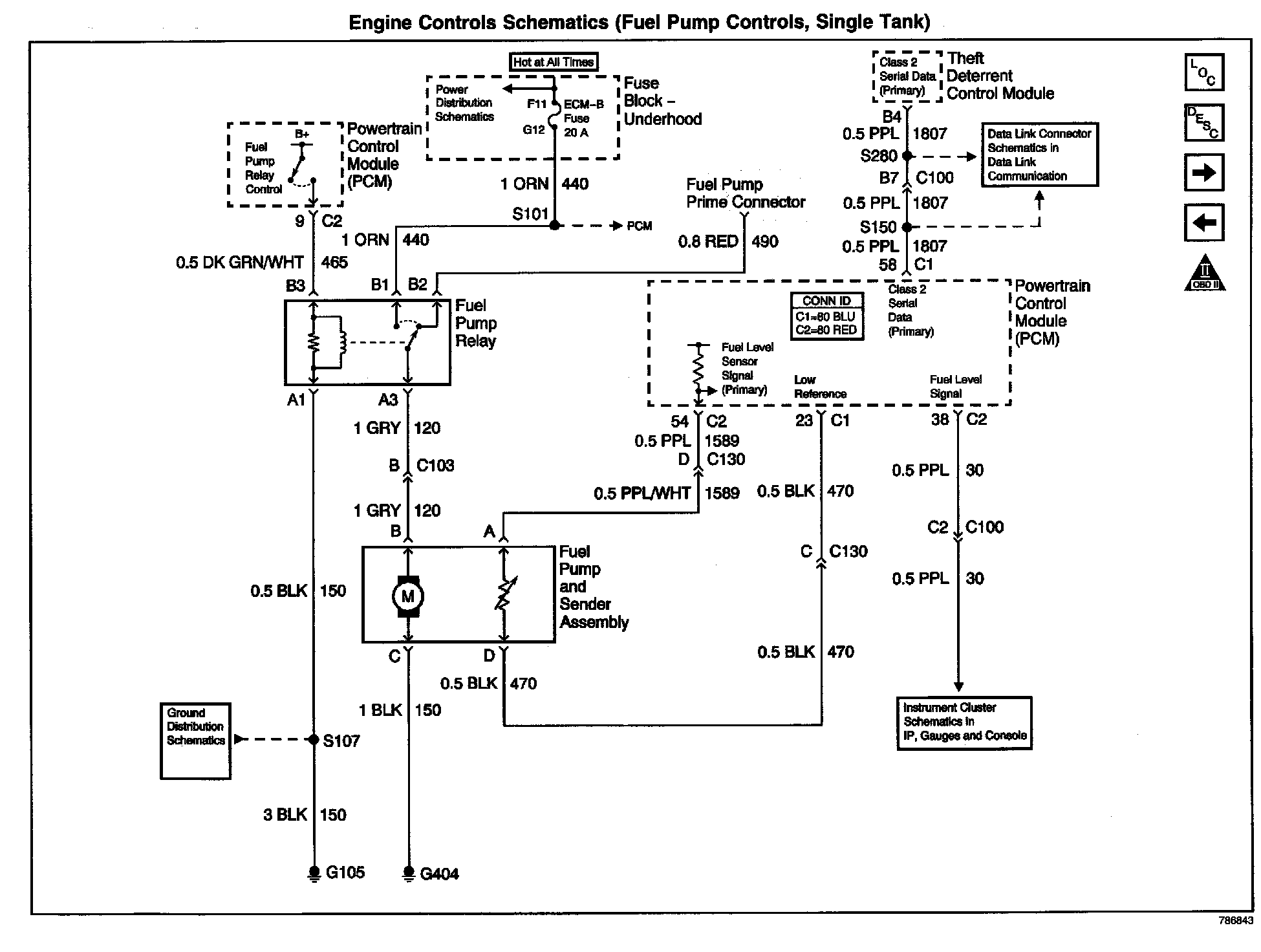

Fuel Pump Controls, Single Tank:
