Front
Brake Pads Replacement- FrontRemoval Procedure
1. Inspect the fluid level in the brake master cylinder.
2. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
3. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
4. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
5. Remove the tire and wheel assembly.
6. Compress the front caliper piston.
6.1. Install a large C-clamp over the top of the caliper housing and against the back of the outboard pad.
6.2. Slowly tighten the C-clamp until the piston pushes into the caliper bore enough to slide the caliper off the rotor.
6.3. Remove the C-clamp from the caliper.
Notice: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from it's mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

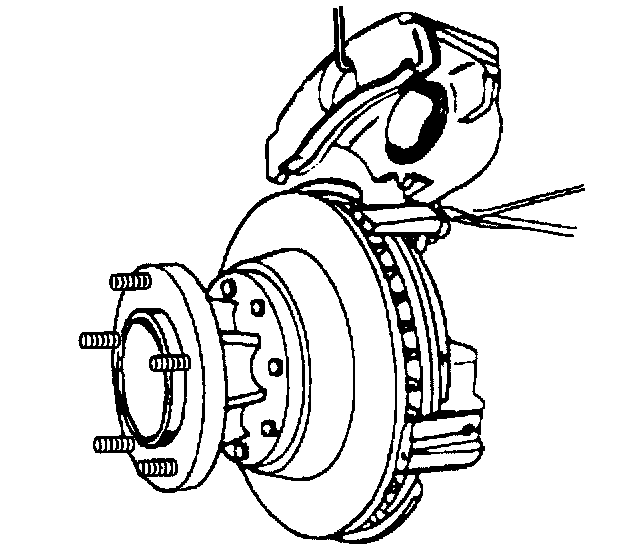

7. Remove the caliper from the mounting bracket and support the caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper.

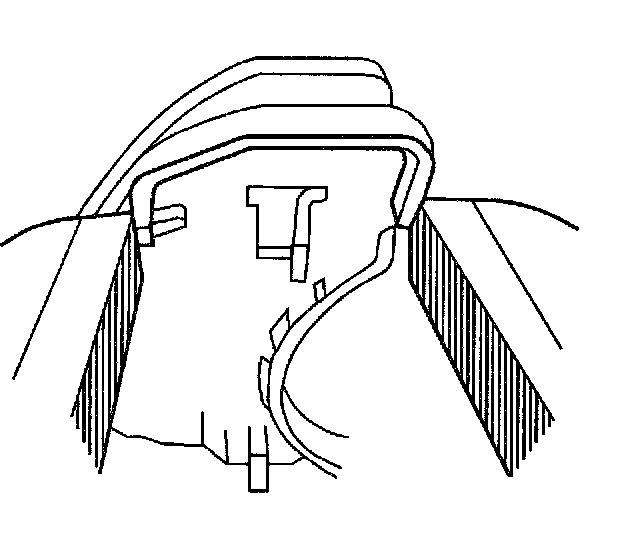

8. Remove the inboard lining.
9. Remove the outboard lining.

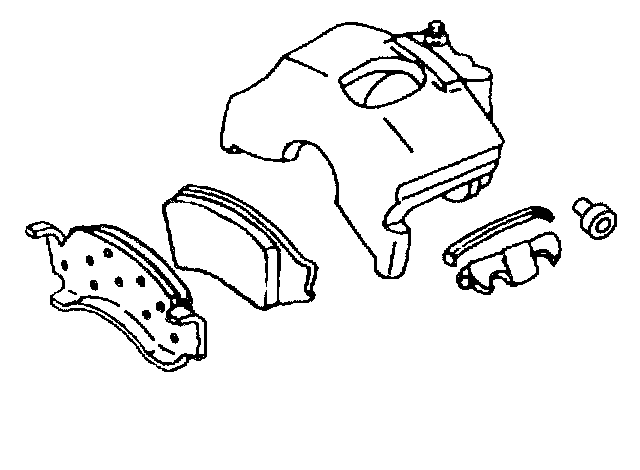

10. Inspect the following parts for cuts, tears, or deterioration. Replace any damaged parts:
^ The disc brake mounting and hardware.
^ The caliper dust boot.
11. Inspect the caliper assembly for signs of fluid leakage. If any leakage is detected refer to Brake Caliper Overhaul - Front.

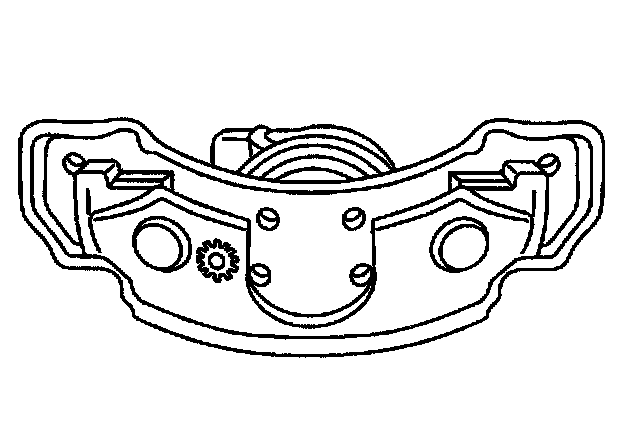

12. Use a wire brush to remove any corrosion from the machined surfaces of the steering knuckle and the caliper.
Installation Procedure

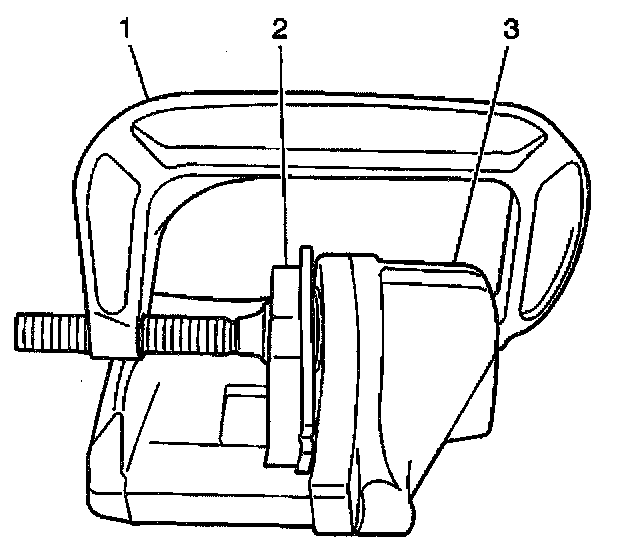

1. Using a C-clamp (1), bottom the piston into the caliper bore (3). Use an old brake pad (2) or wooden block placed across the face of the piston. Do not damage the piston or the caliper boot
2. Lubricate the caliper and the steering knuckle, or support, sliding surfaces and the spring with high temperature silicone brake lubricant.
3. Place the new pad in a vise.
4. Compress the vise as needed to obtain a secure fit between the outer brake pad and the caliper.

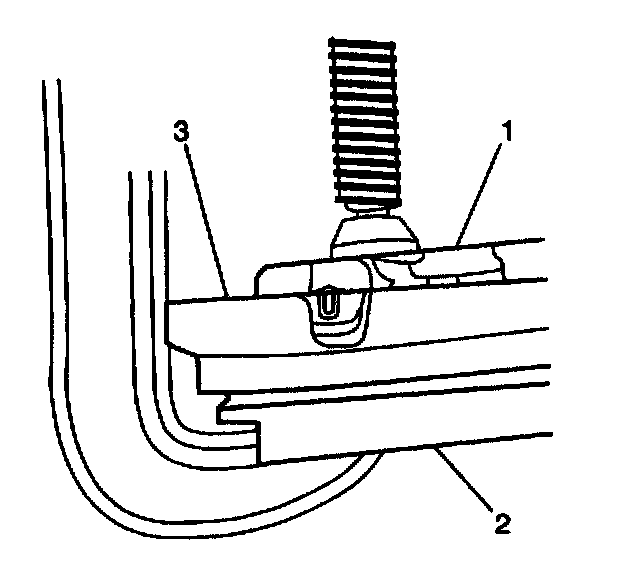

5. Install the outer brake pad (3) onto the caliper (1).
^ If it is necessary use a C-clamp to install the pad onto the caliper.
^ Do not allow the C-clamp to come into contact with the lining.
^ Insert a used brake pad between the C-clamp and the new brake lining.

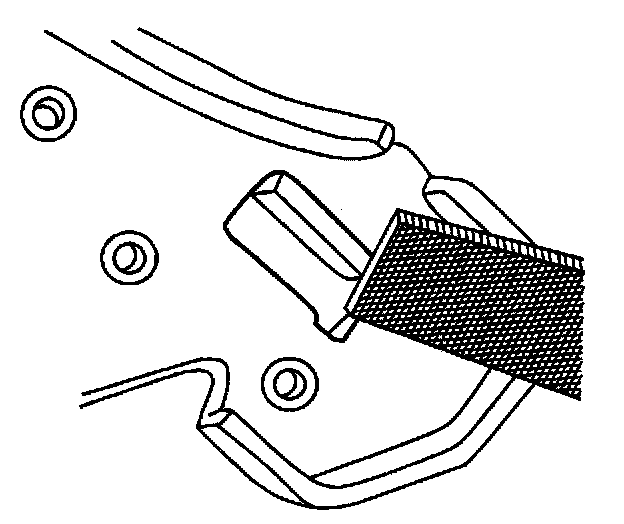

6. File the leading edge of the brake pad tang to aid in the installation of the brake pad to the caliper.
7. Install the caliper.
8. Install the tire and wheel assembly.
9. Lower the vehicle.
10. With the engine OFF, gradually apply the brake pedal approximately 2/3 of its travel distance.
11. Slowly release the brake pedal.
12. Wait 15 seconds, then repeat steps 10-11 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
13. Fill the brake master cylinder to the proper level.
14. Burnish the pads and rotors.
