Chevy Truck
>>
2002
>>
C 2500 Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Systems
>>
Exterior Lighting Systems References
Exterior Lighting Systems References

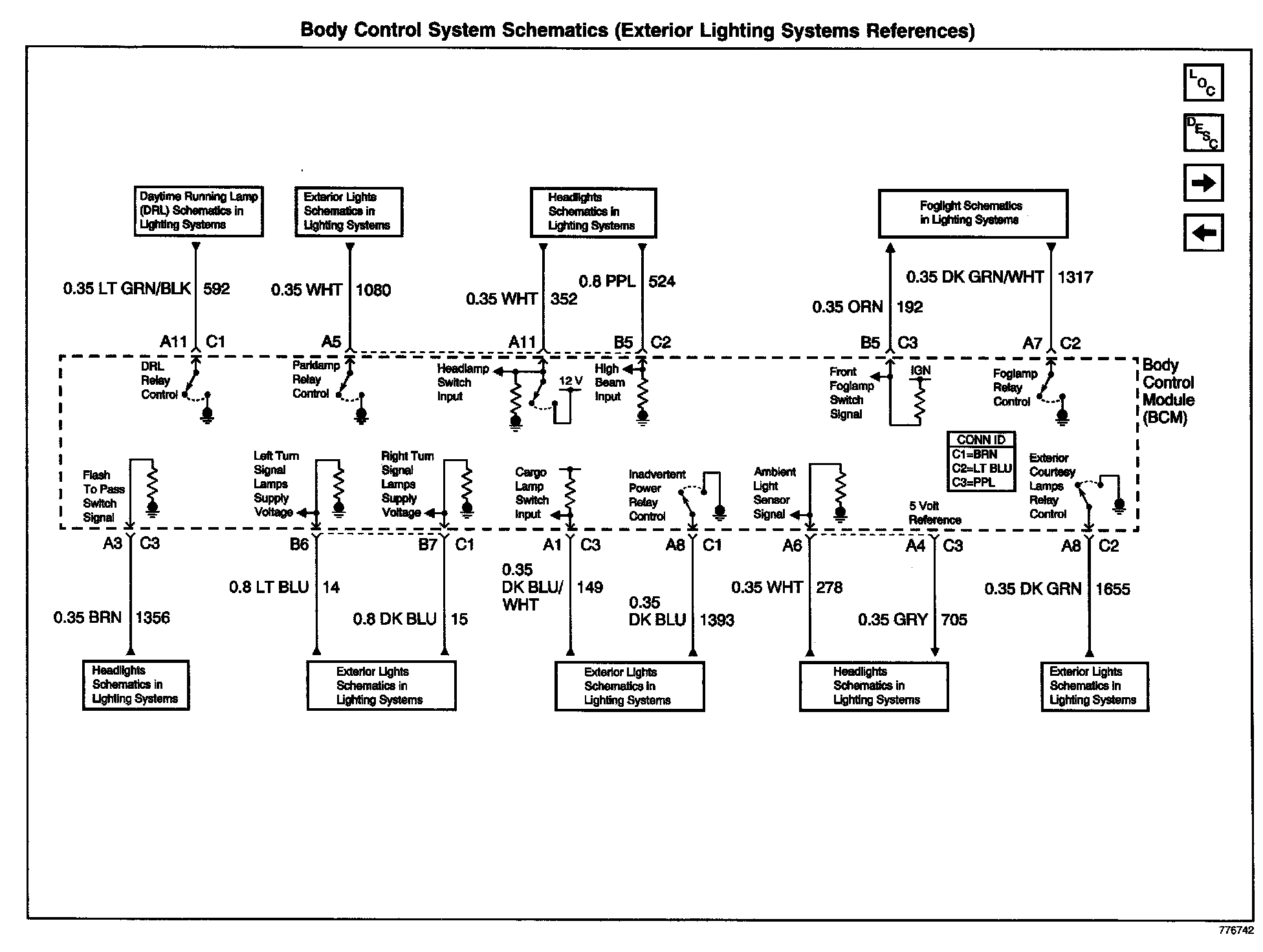

Body Control System Schematics: Exterior Lighting Systems References:
