Traction Control Switch
Traction Control Switch

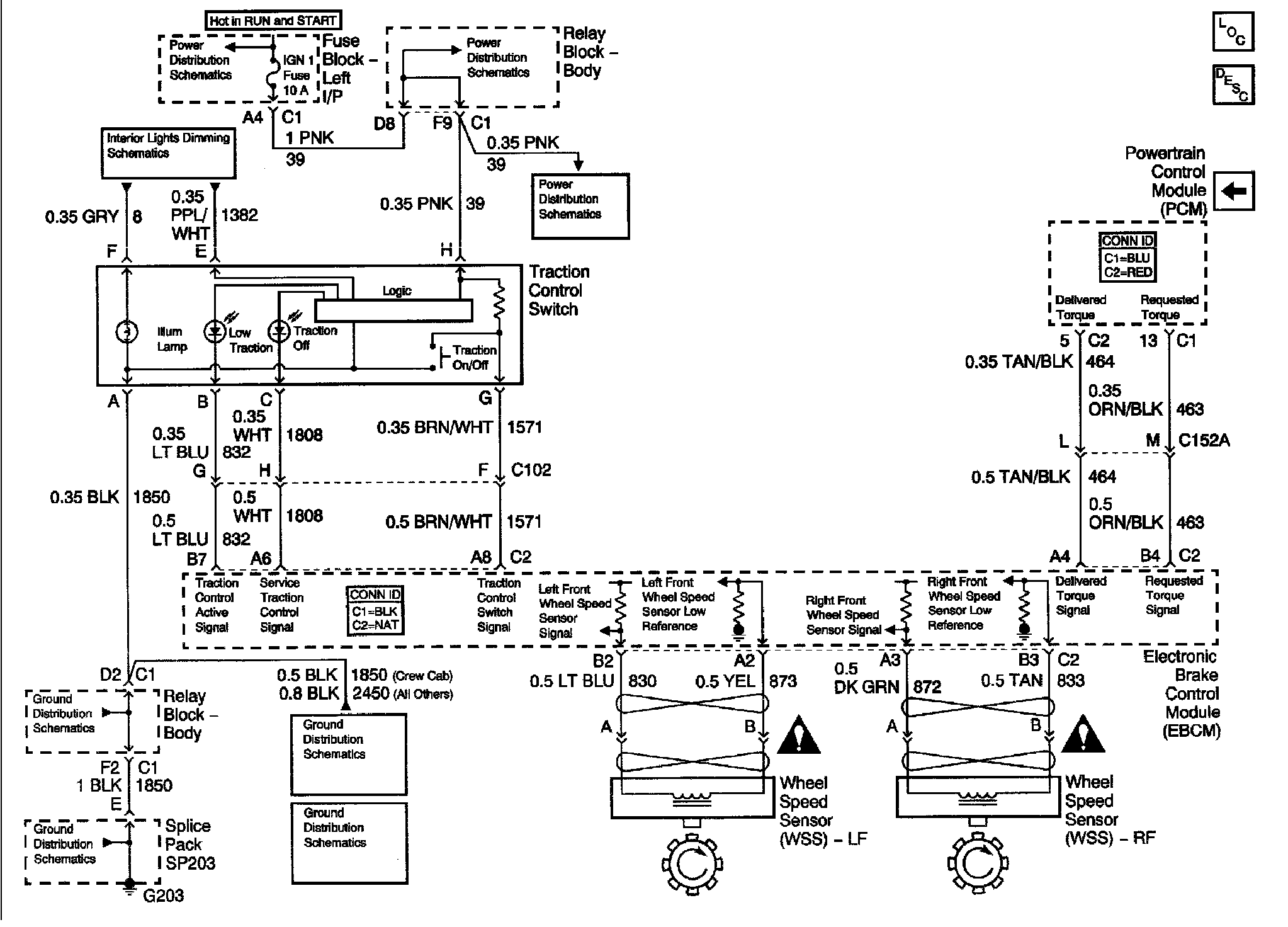

Speed Sensor Signals/Traction Control Switch W/Traction Assist:
