Chevy Truck
>>
2002
>>
C 2500 Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Driver
>>
Lumbar/Bolster Switch
Lumbar/Bolster Switch

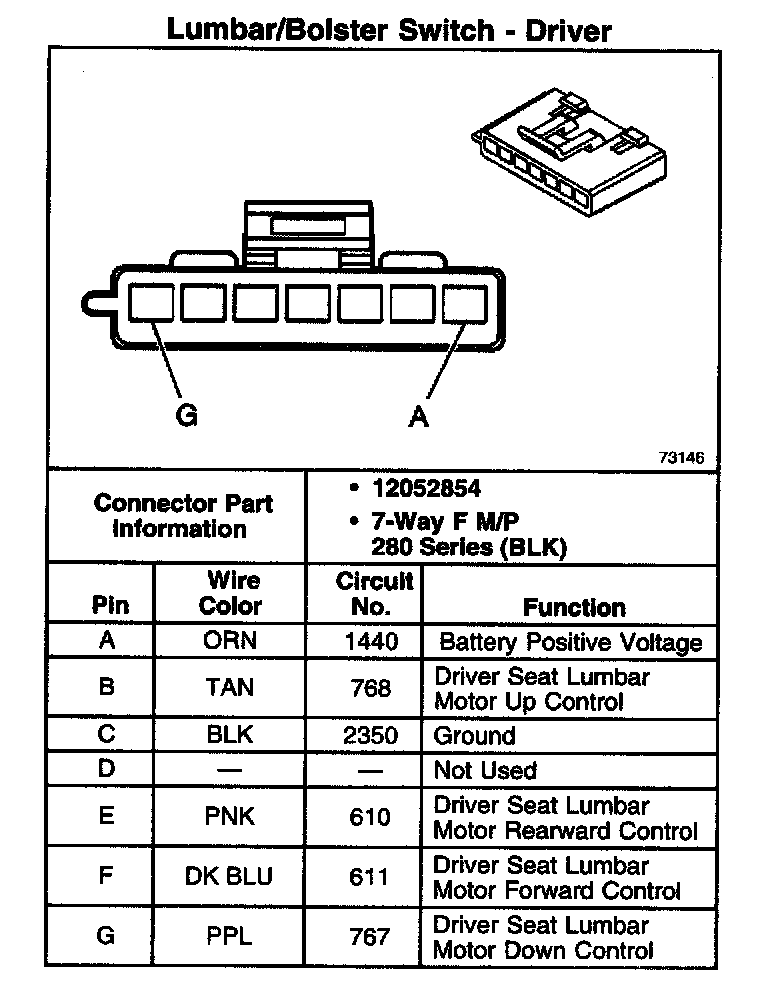

Lumbar/Bolster Switch - Driver:
