Chevy Truck
>>
2002
>>
C 2500 Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor Position Sensor
>>
Seat Front Vertical Position Sensor
Seat Front Vertical Position Sensor

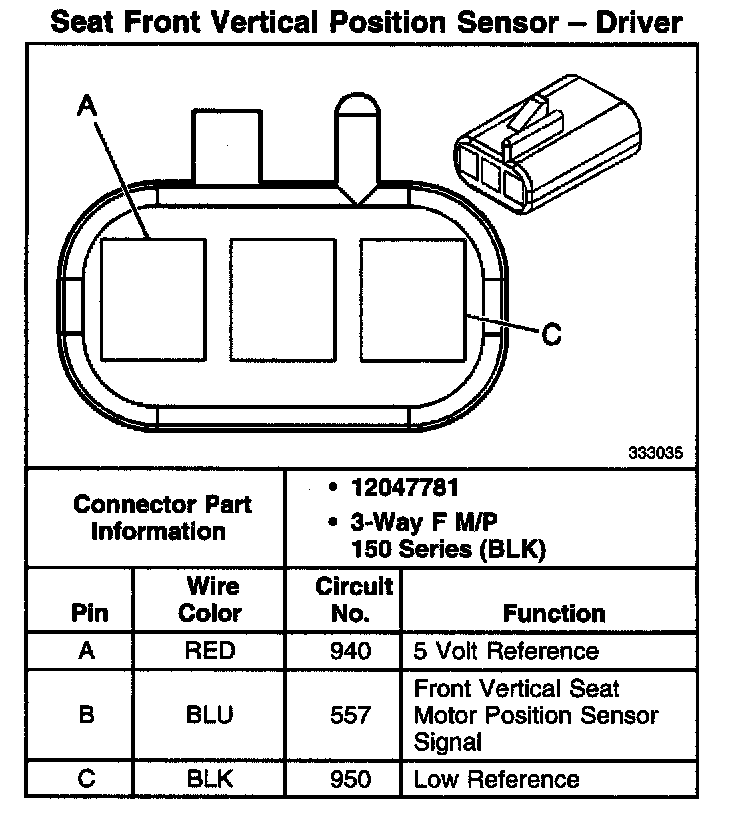

Seat Front Vertical Position Sensor - Driver:
