Chevy Truck
>>
2002
>>
C 2500 Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Front Passenger
>>
Door Lock Switch - Base
Door Lock Switch - Base

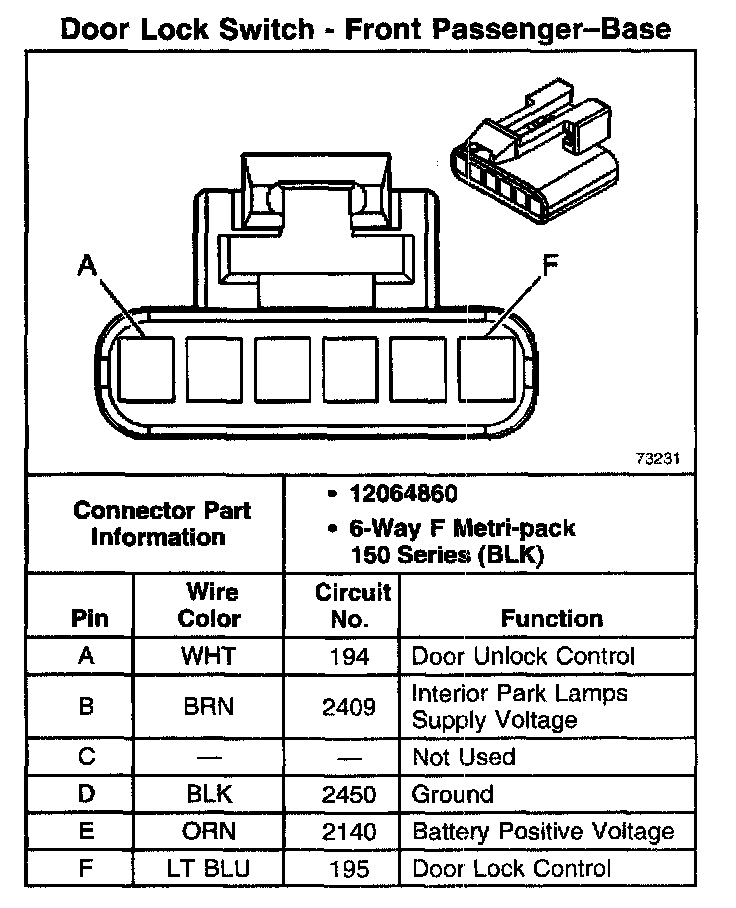

Door Lock Switch - Front Passenger - Base:
