Home
>>
Chevy Truck
>>
2002
>>
C 2500 Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>
Driver
>>
Luxury
Luxury

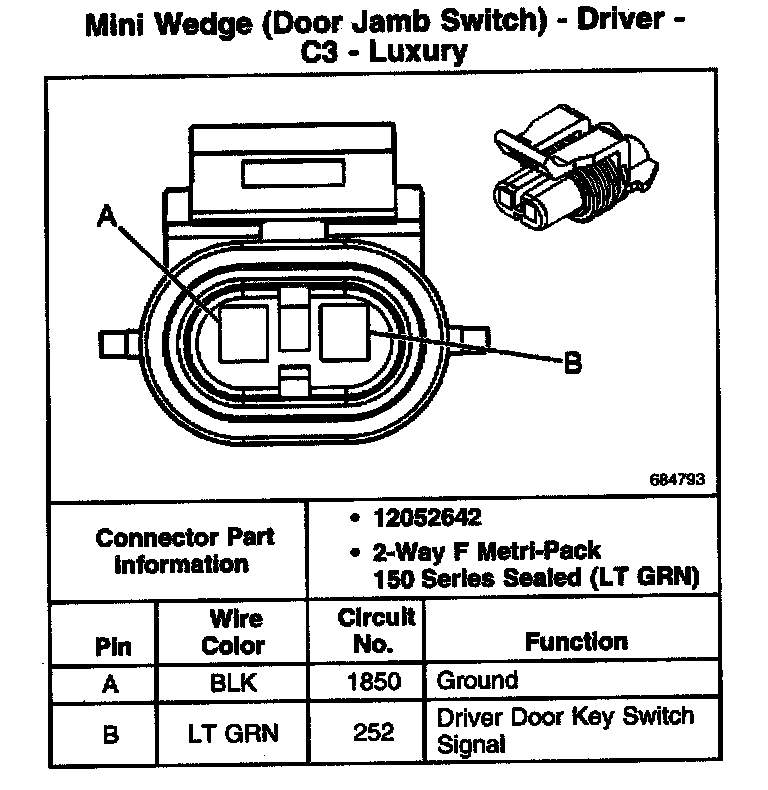

Mini Wedge (Door Jamb Switch) - Driver - C3 - Luxury:
