Support Cable Anchor Bolt Replacement - Endgate

REMOVAL PROCEDURE




1. Lower the endgate.

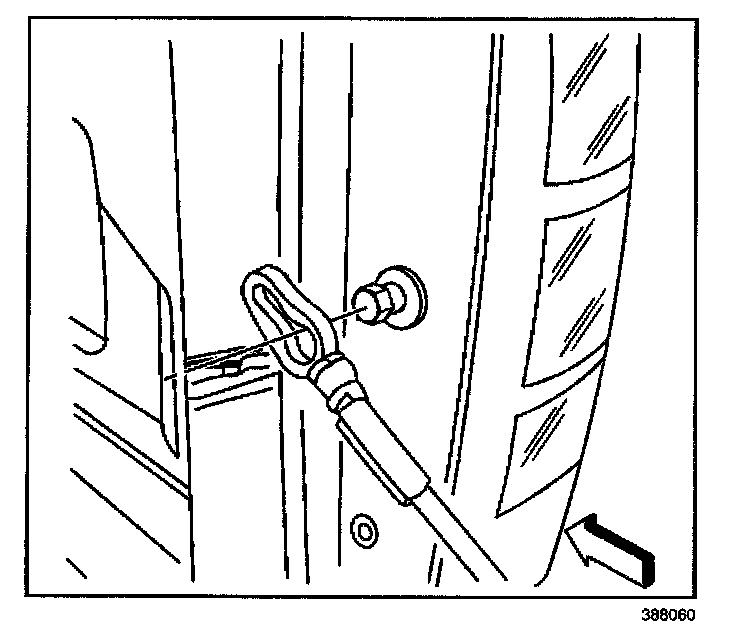

2. Remove the cable from the Anchor Bolt.

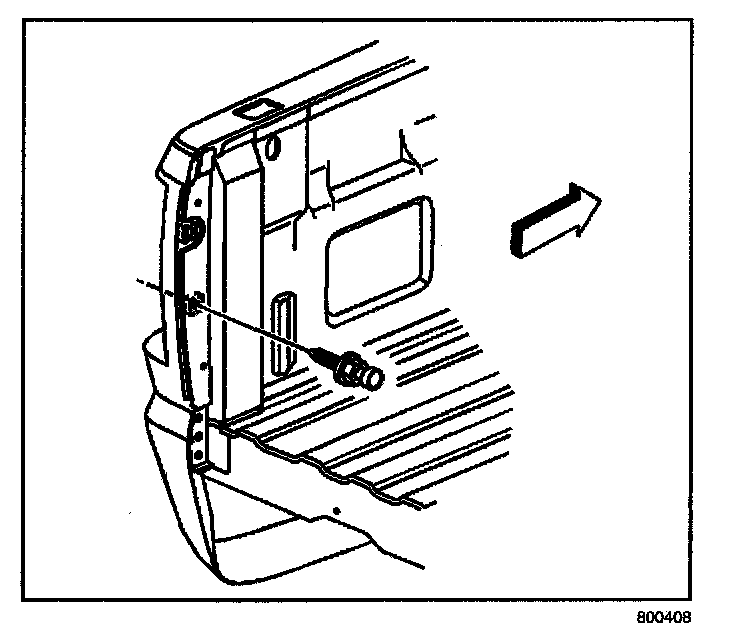

3. Remove the Anchor Bolt.

INSTALLATION PROCEDURE

NOTE: Refer to in Fastener Notice Cautions and Notices.

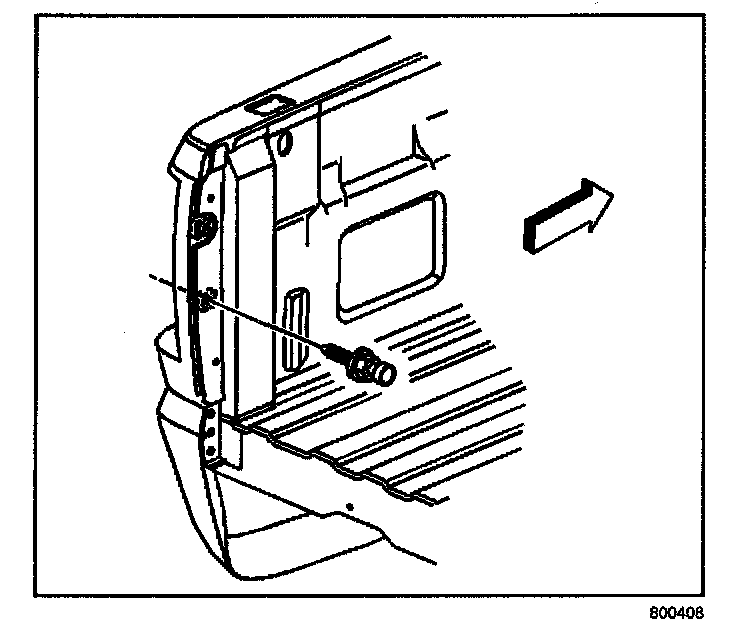

1. Install the Anchor Bolt.

Tighten
Tighten the bolt to 25 N.m (18 lb ft)

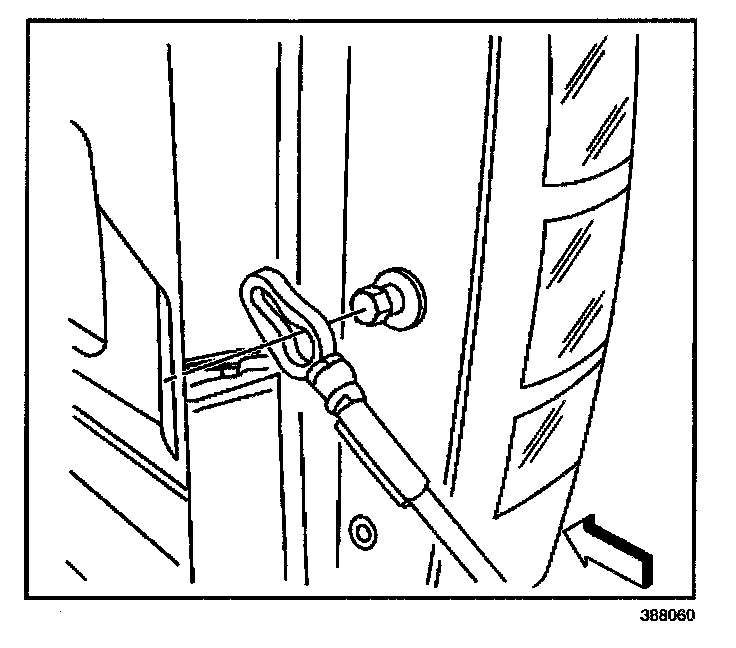

2. Install the cable to the Anchor Bolt.
3. Close the endgate.
