Pickup Box Endgate Cable Bolt Replacement

Pickup Box Endgate Cable Bolt Replacement

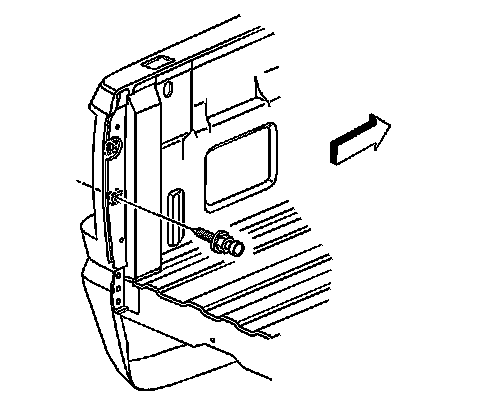

Removal Procedure

1. Lower the endgate.




2. Remove the cable from the anchor bolt.




3. Remove the anchor bolt.

Installation Procedure





Notice: Refer to in Fastener Notice (Fastener Notice).

1. Install the anchor bolt.

Tighten the bolt to 25 Nm(18 lb ft)




2. Install the cable to the anchor bolt.
3. Close the endgate.
