Lock Striker Replacement - End Gate
LOCK STRIKER REPLACEMENT - END GATEREMOVAL PROCEDURE
1. Open the endgate.
2. Remove the tail/turn signal lamp.

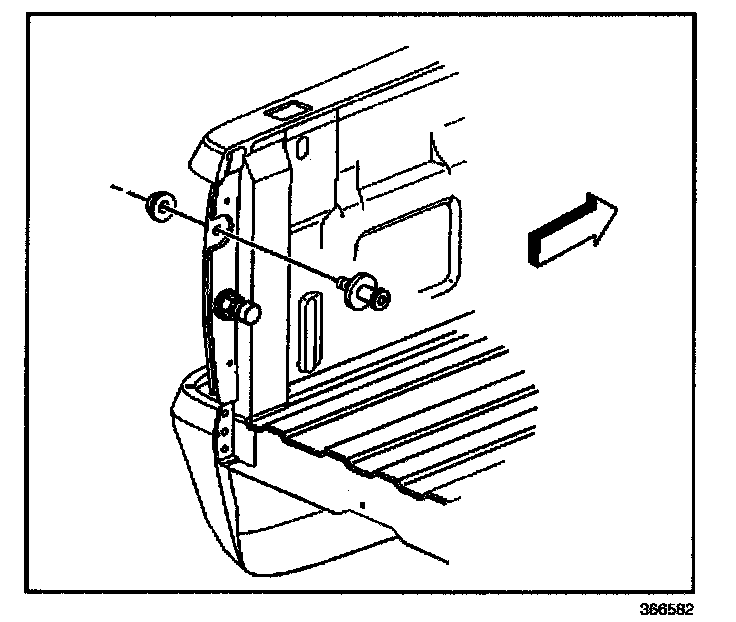

3. Remove the striker bolt.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.

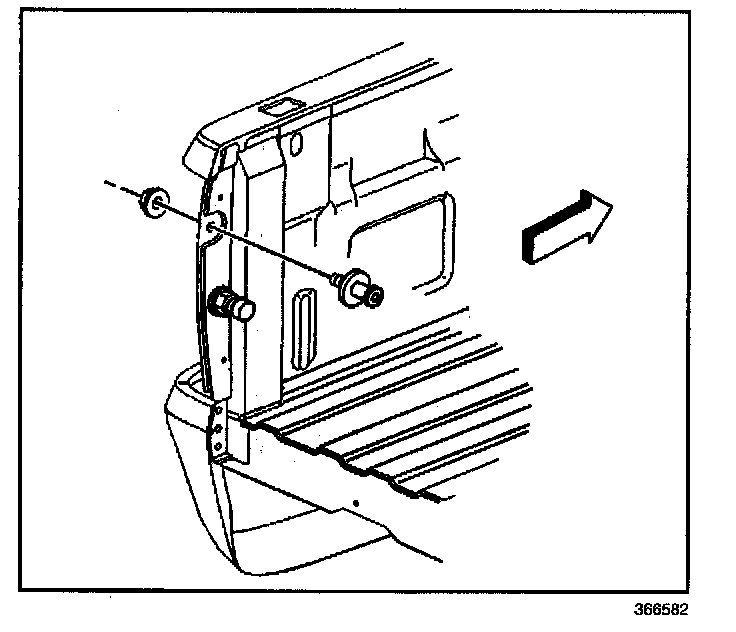

1. Install the striker bolt.
Tighten
Tighten the bolt to 50 N.m (37 lb ft).
2. Install the tail/turn signal lamp.
3. Close the endgate.
