Tailgate Hinge: Service and Repair

Endgate Hinge Replacement

Removal Procedure

1. Remove the endgate. Refer to Endgate Replacement (Endgate Replacement).

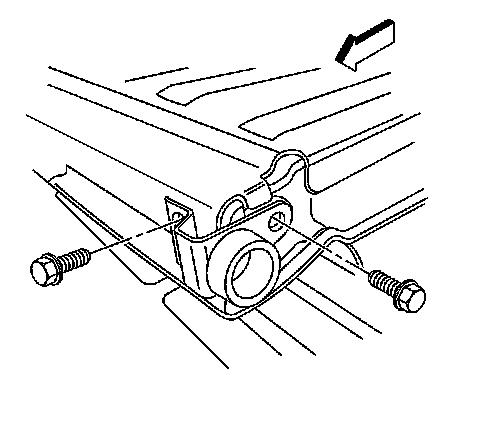

2. Remove the endgate hinge bolts.
3. Remove the hinge.

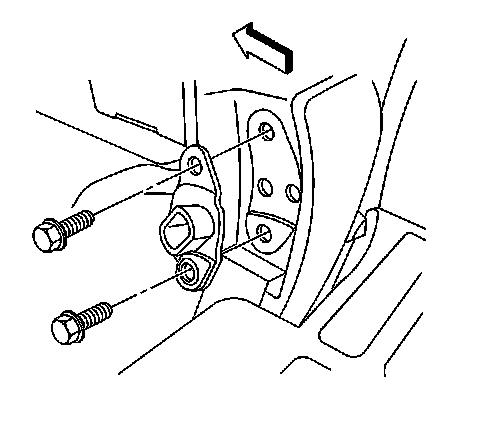

4. Remove the body side hinge bolts.
5. Remove the hinge from the vehicle.

Installation Procedure




1. Install the body side hinge to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the body side hinge bolts.

Tighten the bolts to 25 Nm (18 lb ft).




3. Install the endgate hinge to the vehicle.
4. Install the endgate hinge bolts.

Tighten the bolts to 25 Nm (18 lb ft).

5. Install the endgate. Refer to Endgate Replacement (Endgate Replacement).
