Tool Stowage Compartment Replacement (PRO)

Tool Stowage Compartment Replacement (PRO)

Removal Procedure




1. Raise the rear seat.

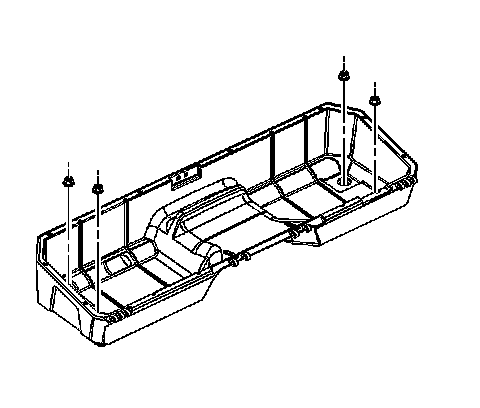

2. Remove the nuts that retain the tool storage compartment to the mounting brackets.
3. Remove the tool storage compartment from the vehicle.

Installation Procedure




1. Install the tool storage compartment to the vehicle.
2. Install the nuts that retain the tool storage compartment to the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice).

3. Install the nuts that retain the tool storage compartment to the mounting brackets.

Tighten the nuts to 10 Nm (88 lb in).

4. Lower the rear seat.
