Tool Stowage Compartment Cover Latch Replacement (PRO)

Tool Stowage Compartment Cover Latch Replacement (PRO)

Removal Procedure





Caution: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

1. Raise the rear seat.

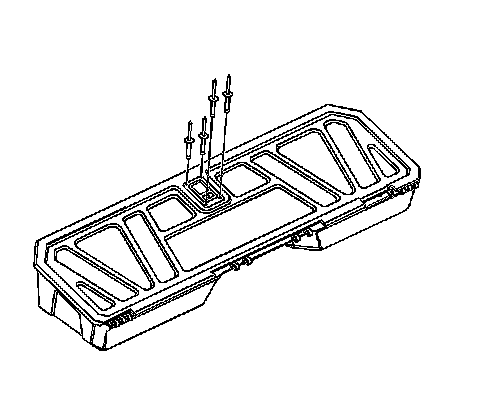

2. Remove the rivets retaining the lock assembly to the tool storage compartment.
3. Remove the lock assembly from the vehicle.

Installation Procedure




1. Install the lock assembly to the vehicle.
2. Install the rivets retaining the lock assembly to the tool storage compartment.
3. Lower the rear seat.
