Tool Storage Compartment Lock Replacement (PRO)

REMOVAL PROCEDURE

CAUTION: Eye protection must be worn when drifting rivets to reduce the chance of personal injury.




1. Raise the rear seat.

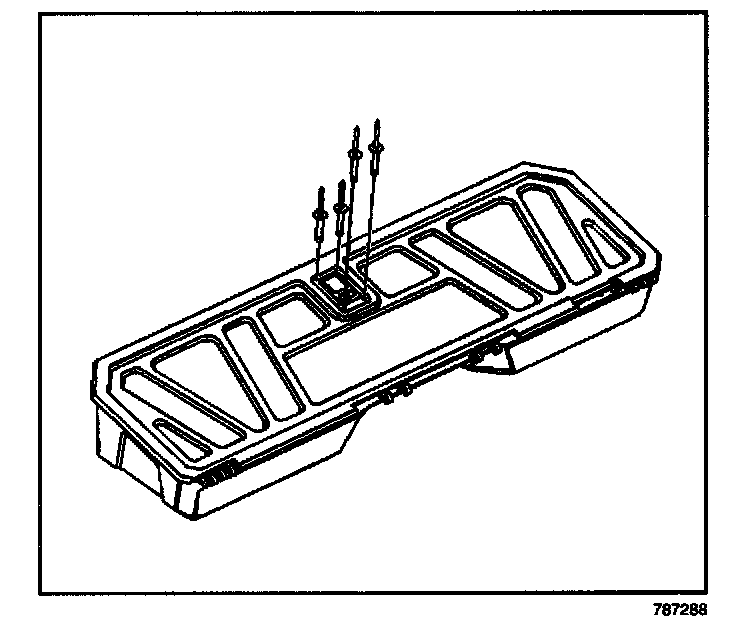

2. Remove the rivets retaining the lock assembly to the tool storage compartment.
3. Remove the lock assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the lock assembly to the vehicle.
2. Install the rivets retaining the lock assembly to the tool storage compartment.
3. Lower the rear seat.
