Service Procedure

Label installation Procedure

1. Open the vehicle hood.

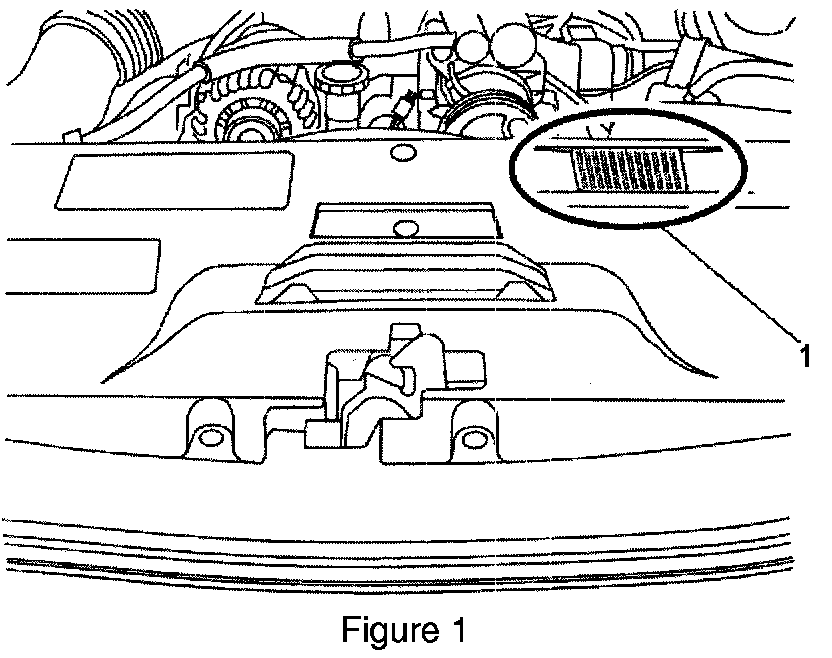

2. Using a clean, dry cloth, wipe dirt, oil etc. from the engine fan shroud label placement location (see (1) figure 1).

3. Remove the backing from the new label and apply the label to the fan shroud as indicated.

4. Beginning at the center of the label and using a clean, dry cloth, smooth and secure the new label. Any air bubbles can be removed by puncturing with a pin and smoothing with the cloth.

Notice:
Do not attempt to remove or loosen the new label once it has been applied, as this will deface the label.

5. Install the GM Identification Label.
