Evaporative Emissions System: Diagrams

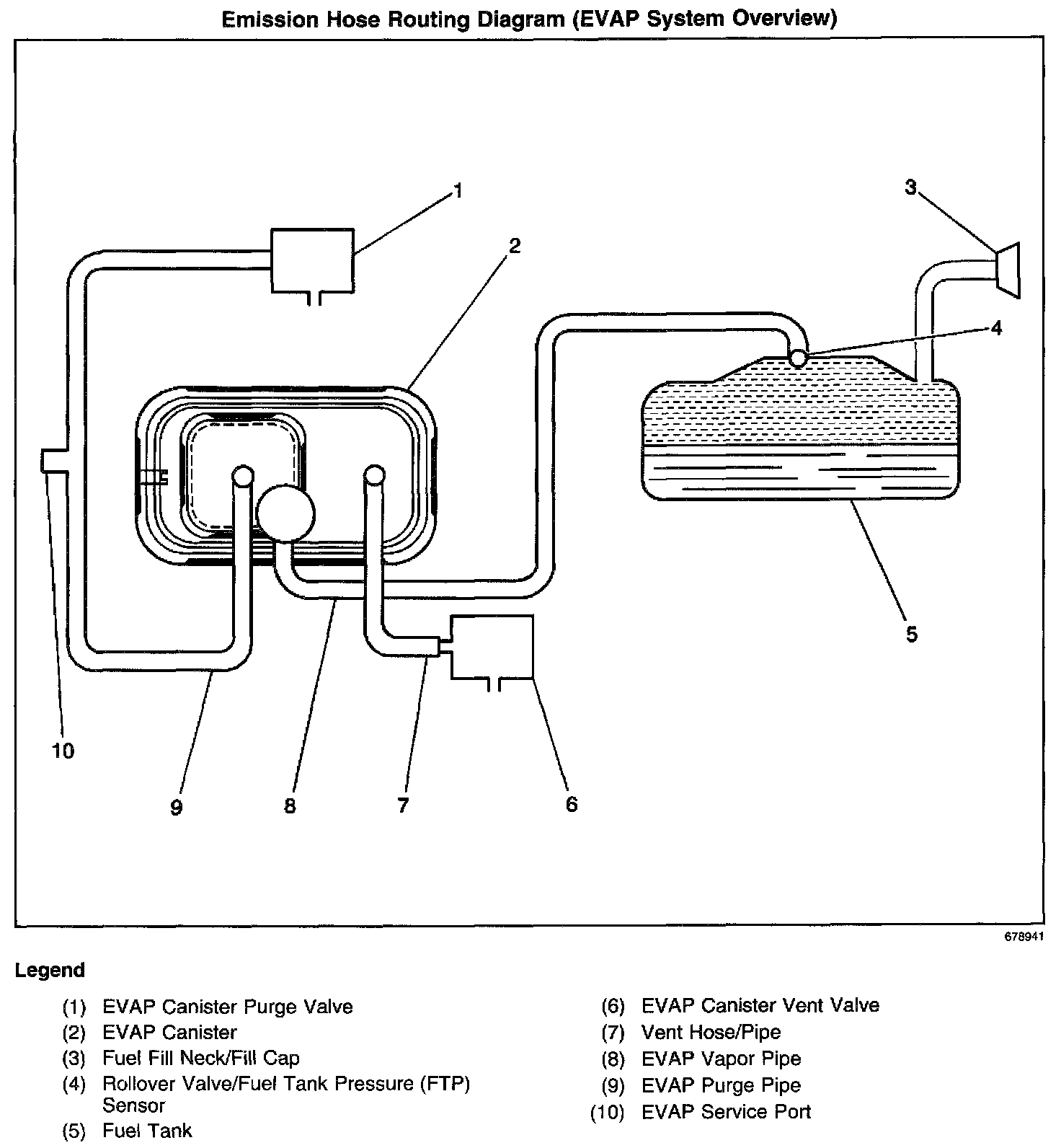

Emission Hose Routing Diagram (EVAP System Overview):

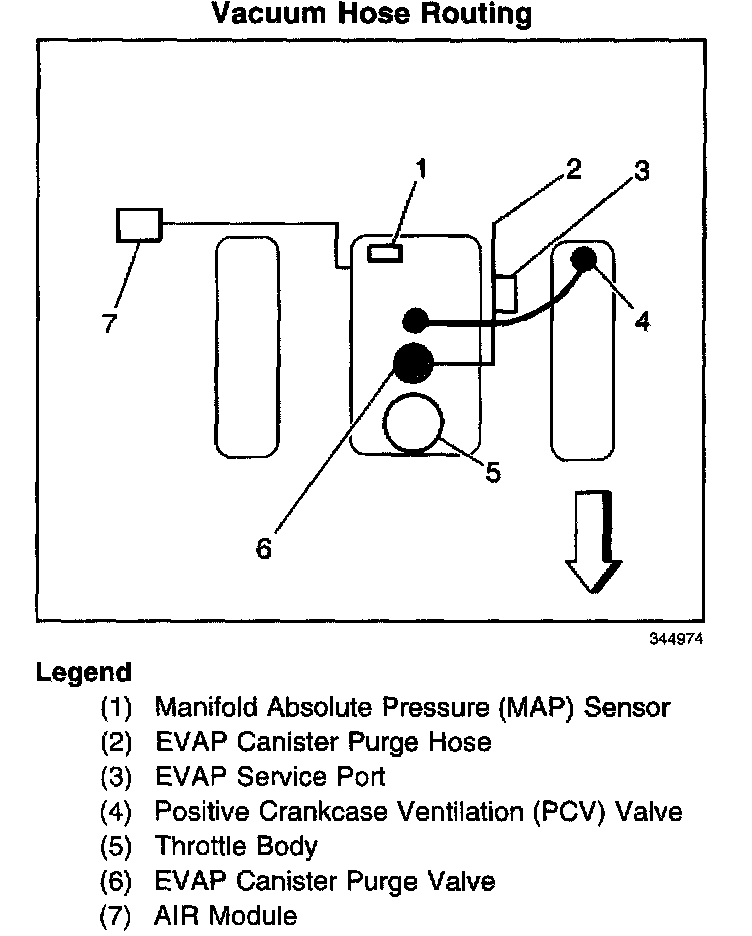

Vacuum Hose Routing:
