Power Steering Pump Replacement
Power Steering Pump ReplacementRemoval Procedure
1. Place a drain pan under the vehicle.
2. Remove the power steering pulley.

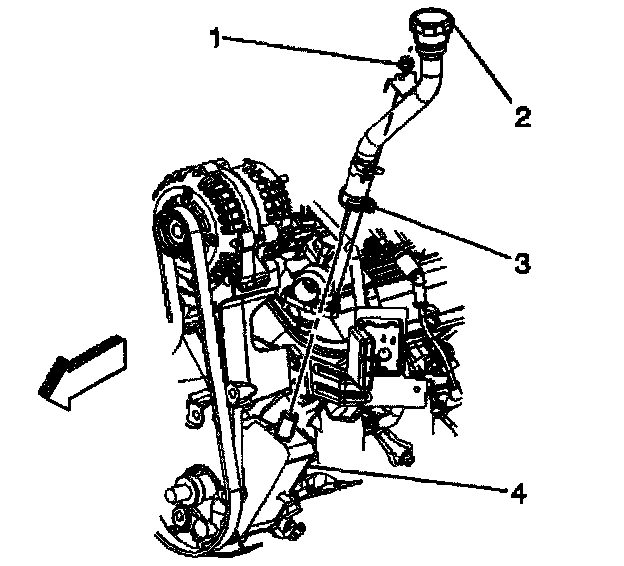

3. Remove the nut (1) and clamp (3) retaining the filler neck (1) to the power steering pump, if equipped.

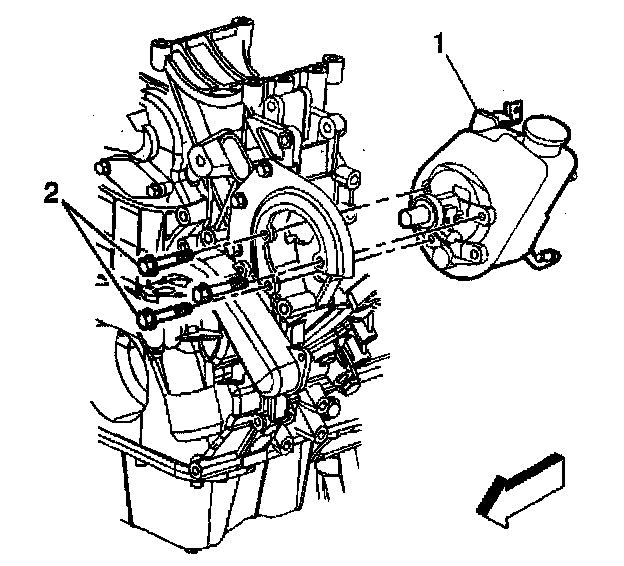

4. Remove the bolts (2) from the front of the pump.
5. Remove the bolts retaining the power steering mounting bracket.
6. Remove the bolts from the rear of the pump.
7. Remove the hoses from the pump.
8. For vehicles with variable effort steering, disconnect the electrical connector.
9. Remove the pump from the vehicle.
10. Remove the rear bracket from the power steering pump.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.
1. Install the rear bracket to the power steering pump.
Tighten the rear bracket retaining bolts to 50 Nm (37 ft. lbs.).
2. Install the power steering pump to the vehicle.
3. Install the hoses to the pump.
Tighten the hose fitting to 28 Nm (20 ft. lbs.).
4. For vehicles with variable effort steering, connect the electrical connector.

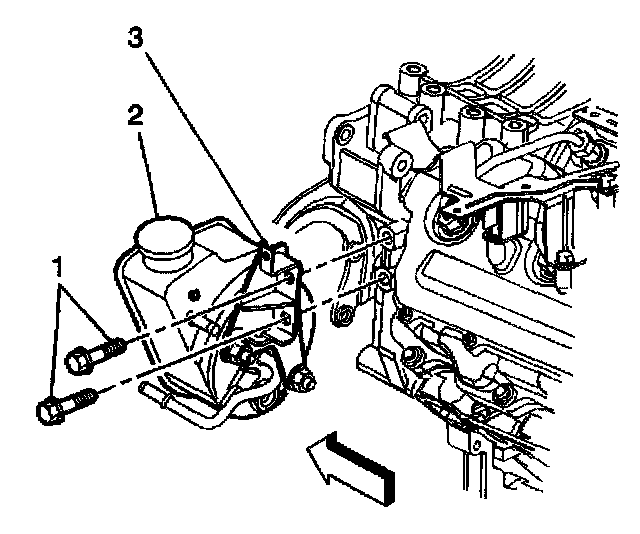

5. Install the bolts (1) to the rear of the power steering pump.
Tighten the rear bolts to 50 Nm (37 ft. lbs.).
6. Install the power steering pump mounting bracket.
Tighten the mounting bracket bolts to 46 Nm (34 ft. lbs.).
7. Install the power steering pump (1) to the bracket.

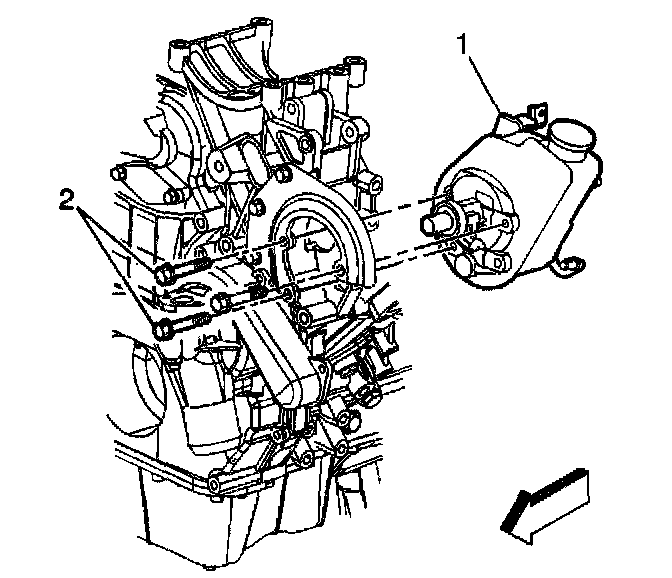

8. Install the bolts (2) to the front of the pump.
Tighten the power steering pump retaining bolts to 50 Nm (37 ft. lbs.).
9. Install the filler neck to the power steering pump.

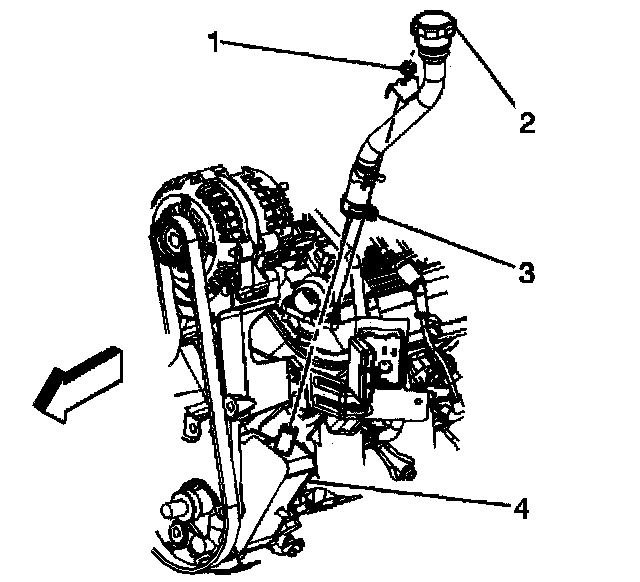

10. Install the nut (1) and clamp (3) retaining the filler neck to the power steering pump.
Tighten the filler neck retaining nut to 25 Nm (18 ft. lbs.).
11. Fill and bleed the power steering system.
