Relay Block - Body

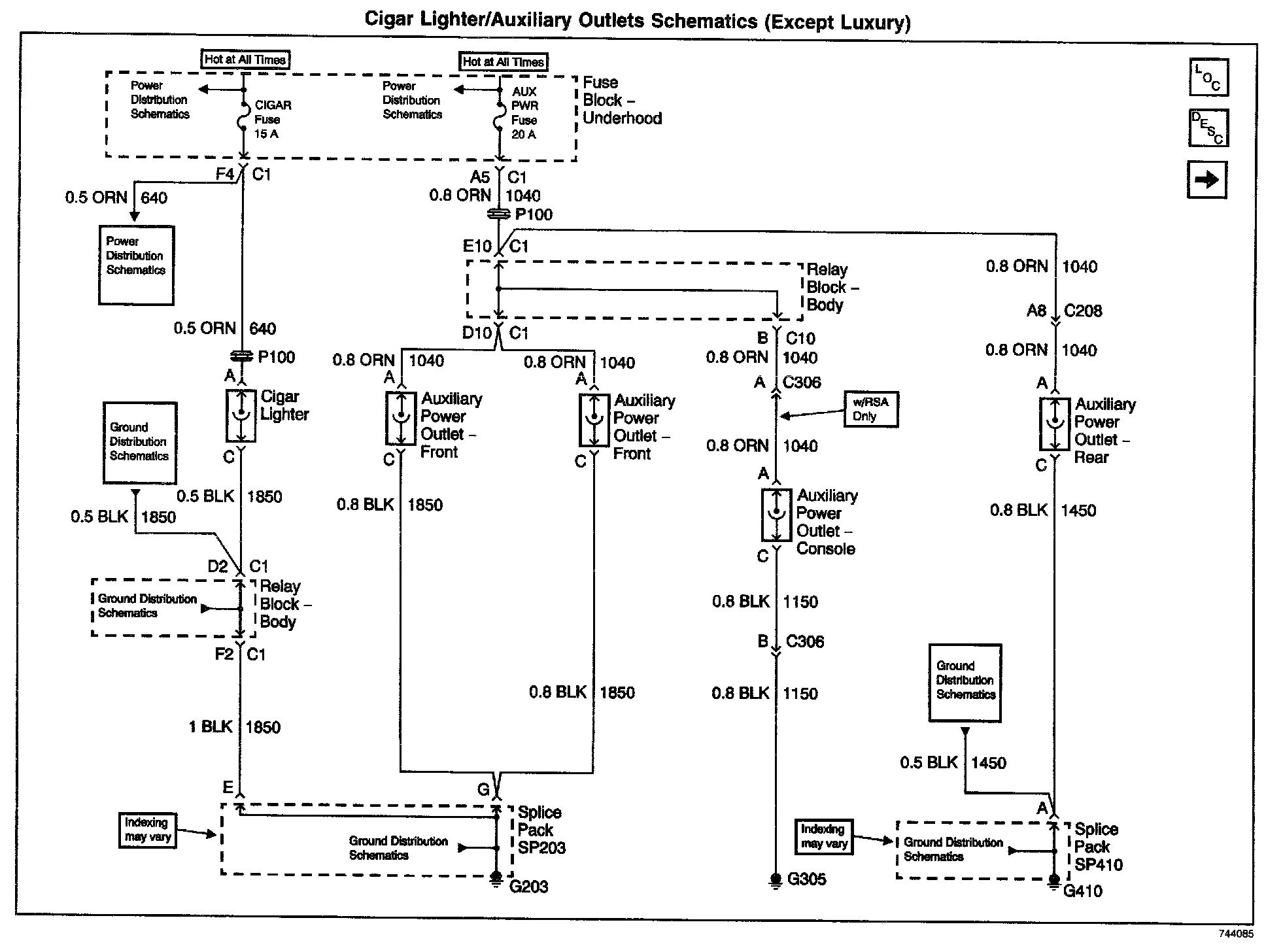

Cigar Lighter/Auxiliary Outlets Schematics: Except Luxury:

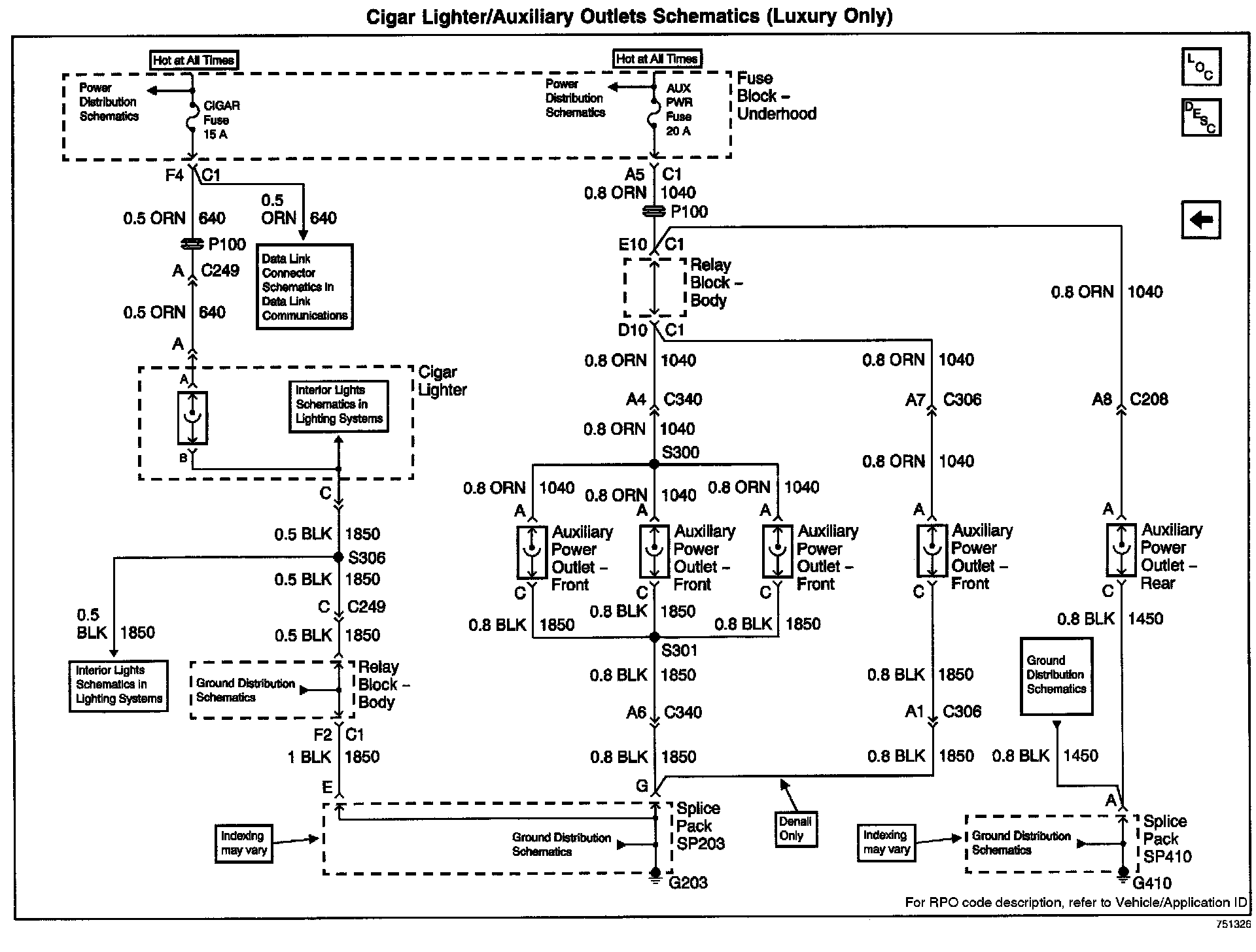

Cigar Lighter/Auxiliary Outlets Schematics: Luxury Only:
