Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>

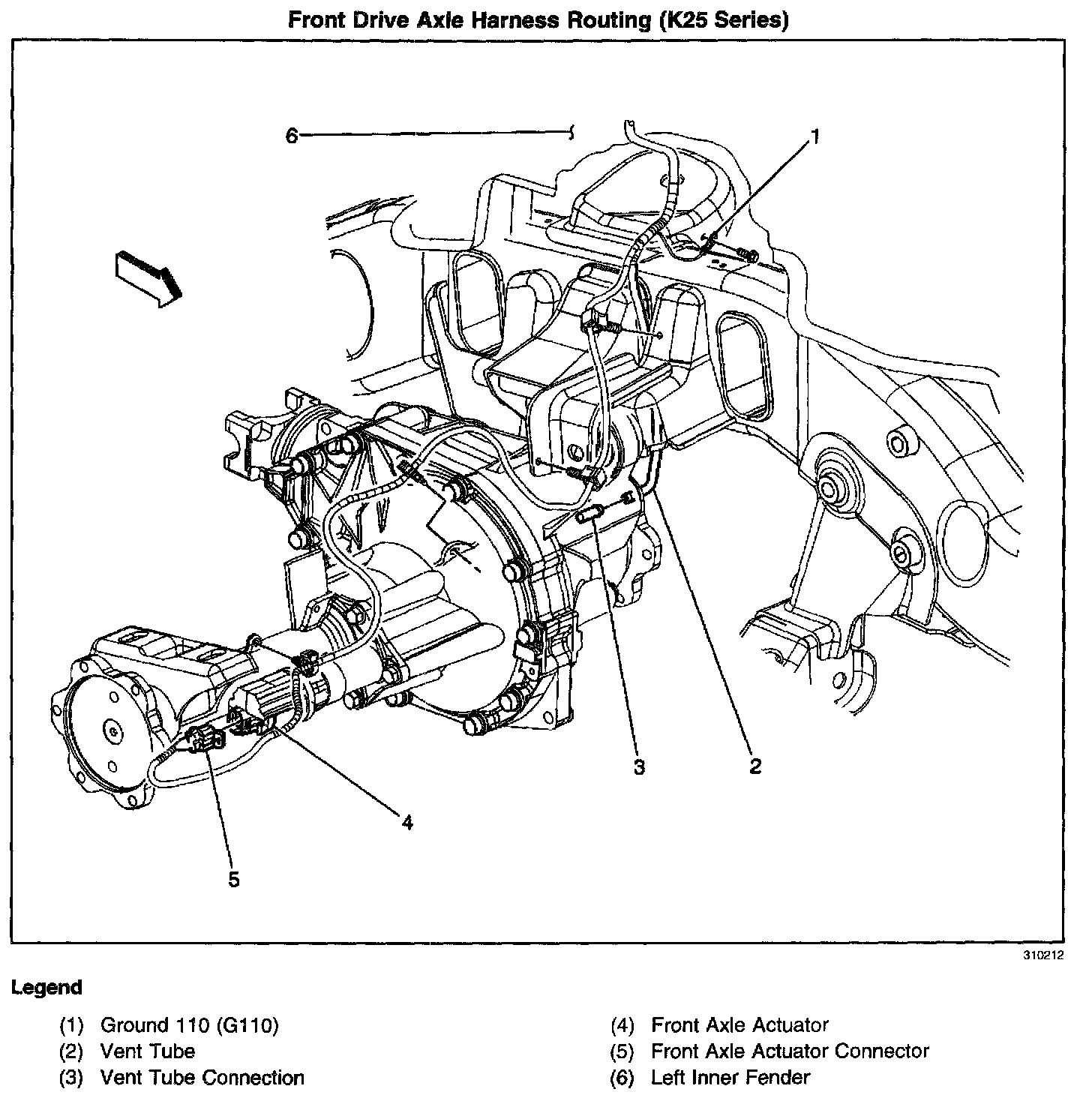

Front Drive Axle Harness Routing (K25 Series)
Front Drive Axle Harness Routing (K25 Series)
Locations View:
