Front Drive Axle Harness Routing (K15 Series)

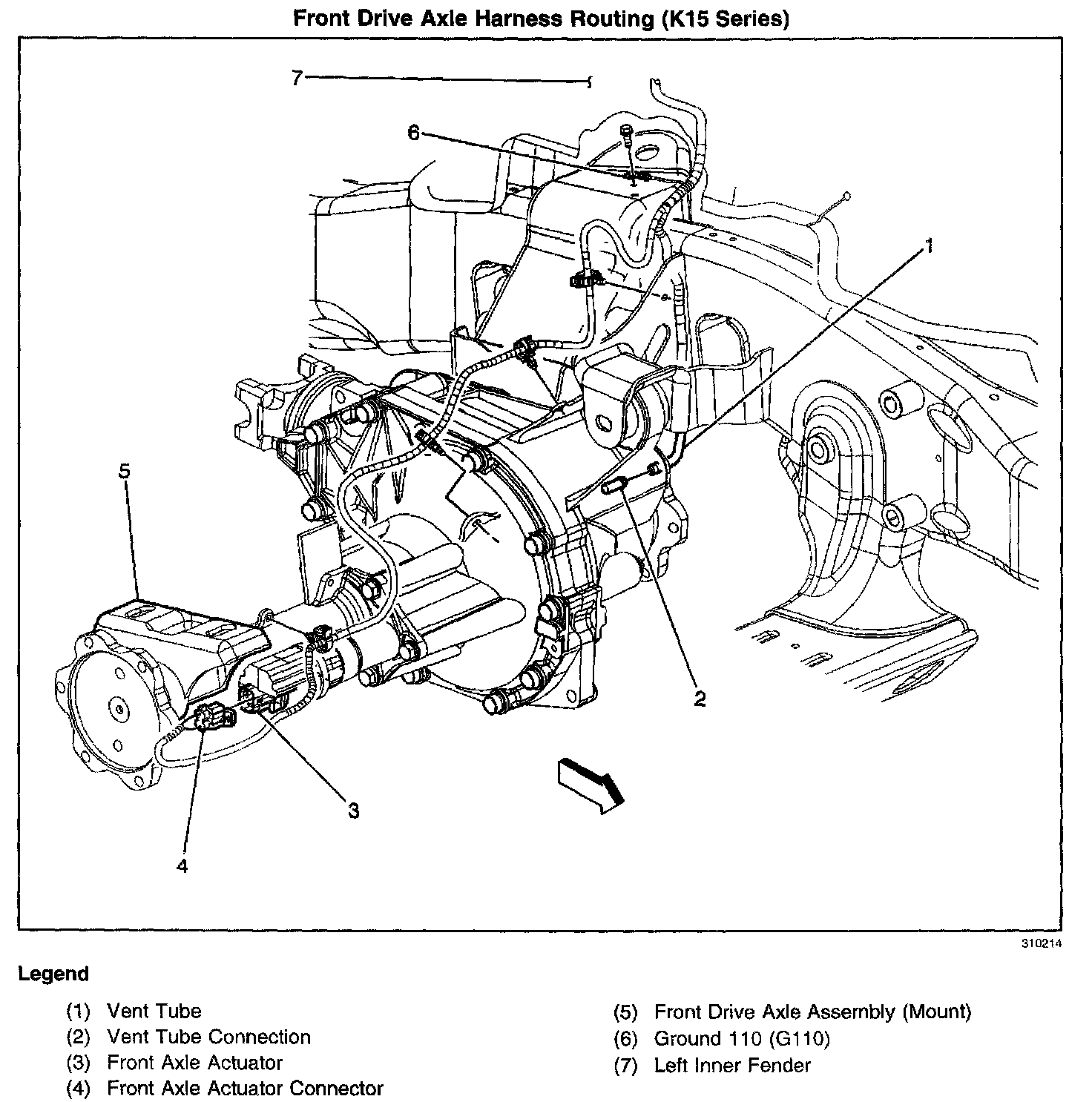

Front Drive Axle Harness Routing (K15 Series)
Locations View:
