Home
>>
Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
>>

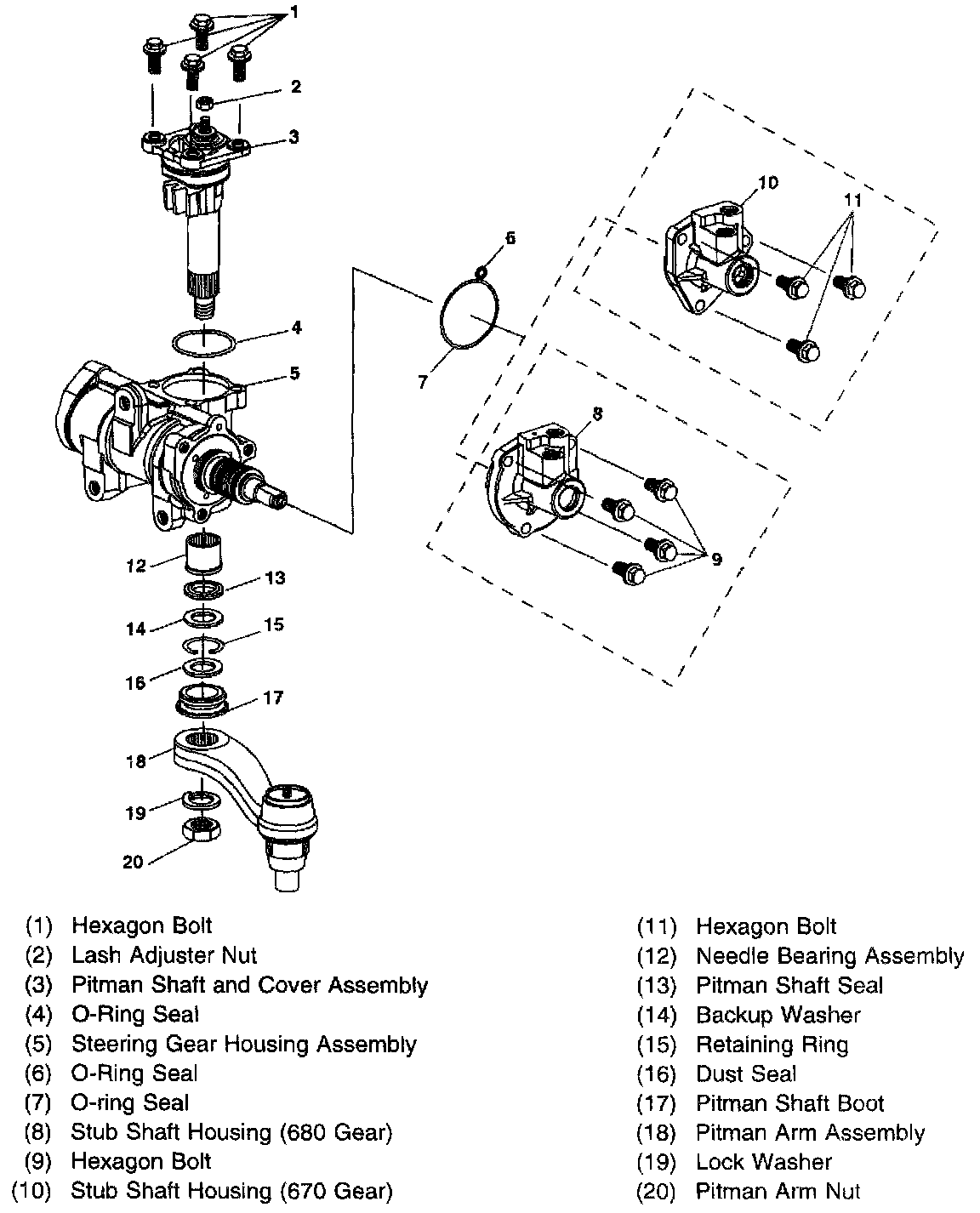

Power Steering Gear Disassembled View (670 Gear)
Power Steering Gear Disassembled View (670 Gear)
