Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
System Diagram
>>

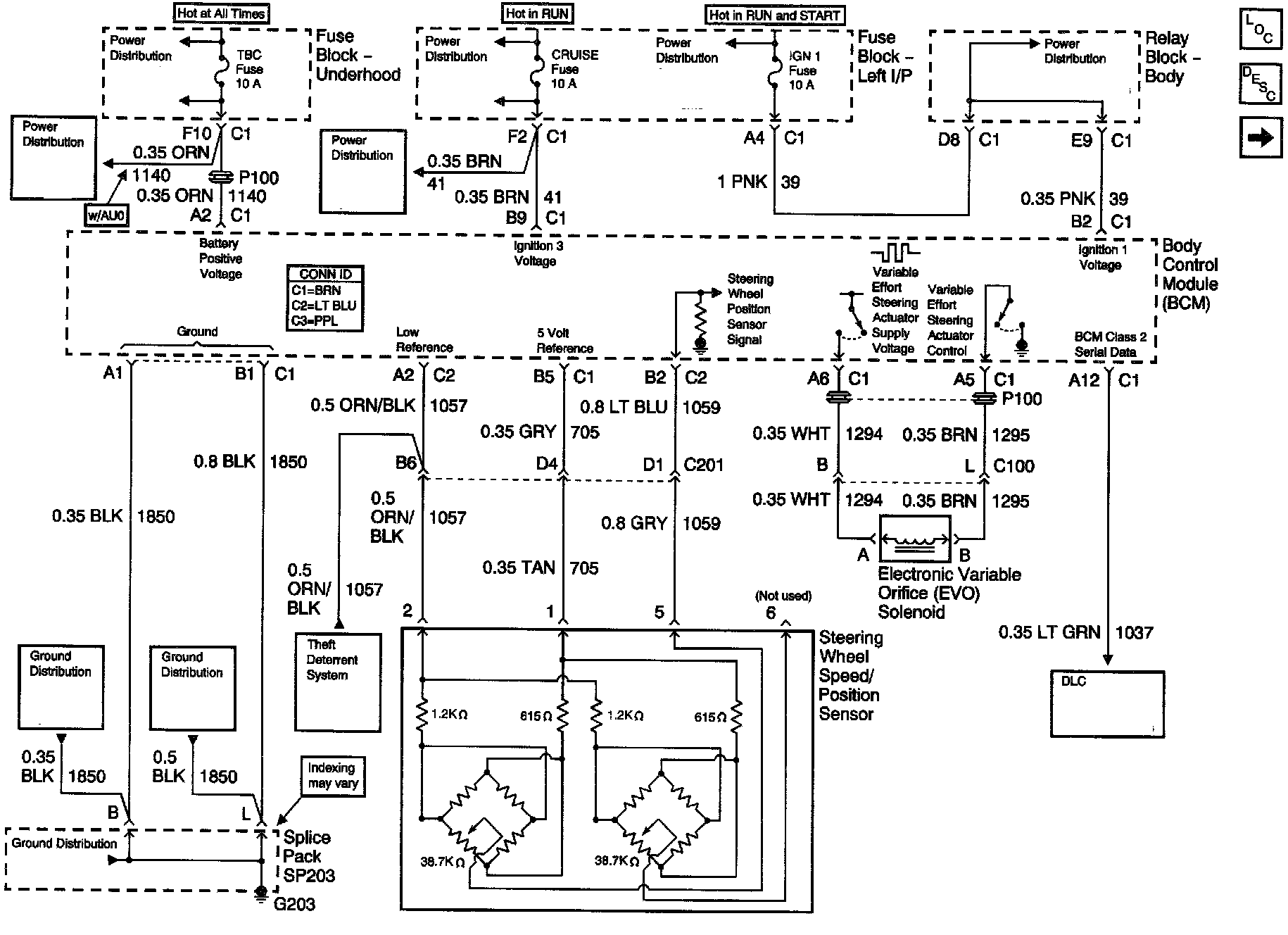

Steering Controls Schematics (W/O RTD)
Steering Controls Schematics (W/O RTD)
