Home >> Chevy Truck >> 2002 >> Avalanche 2500 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seats Schematics >> Front Passenger

Front Passenger

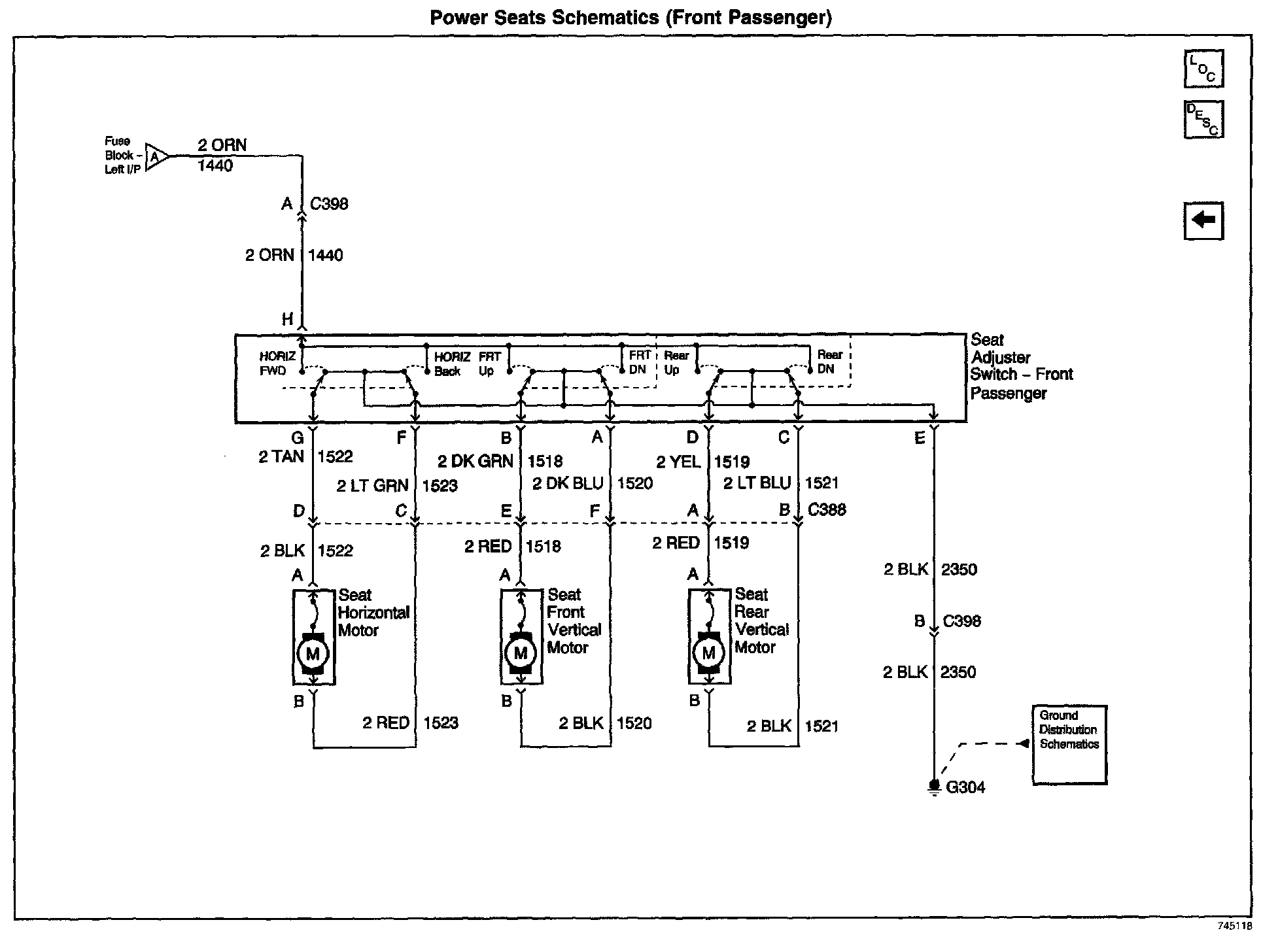

Power Seats Schematics (Front Passenger):
