Home
>>
Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seats Schematics
>>
Driver
Driver

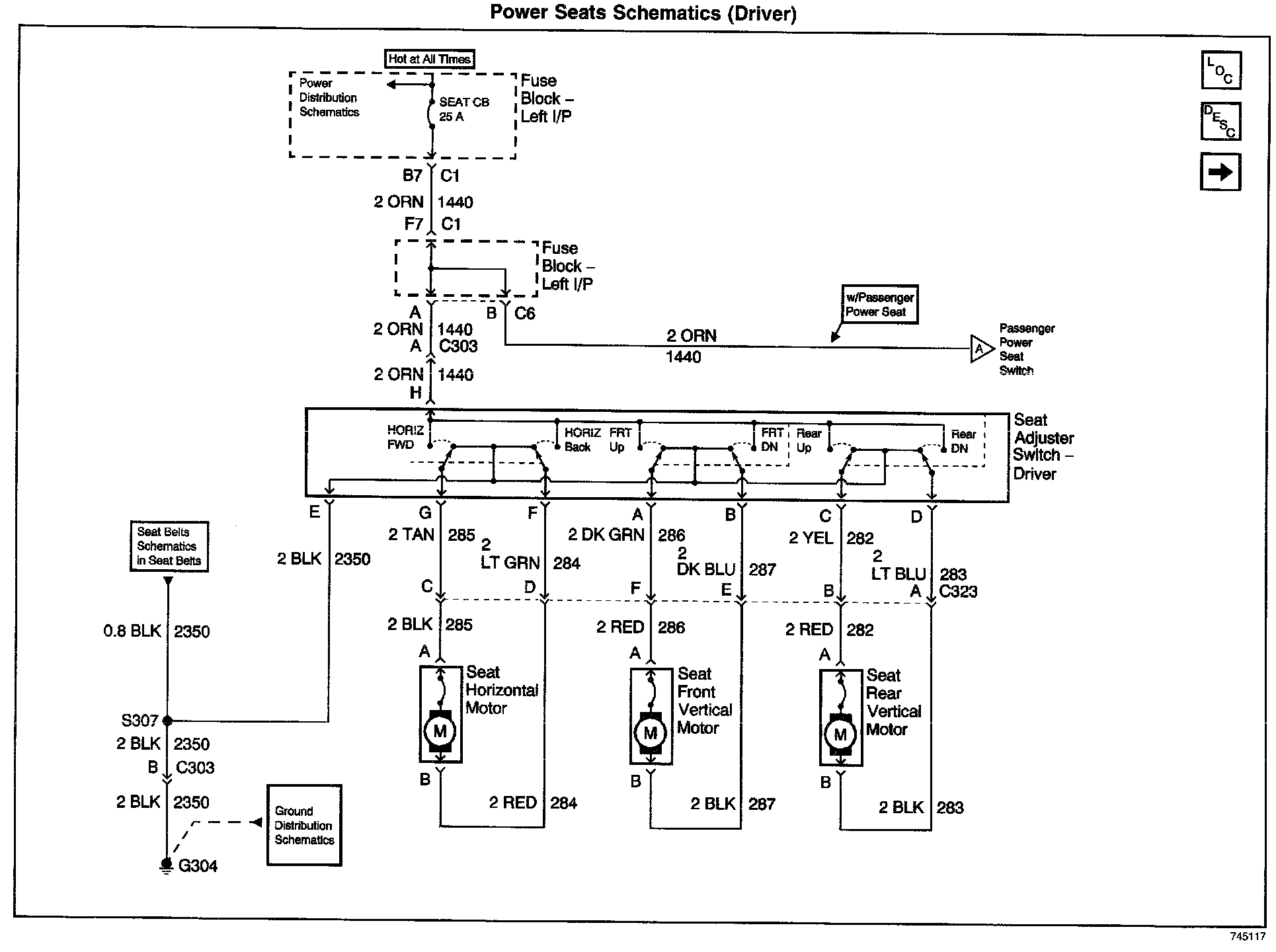

Power Seats Schematics (Driver):
