Home >> Chevy Truck >> 2002 >> Avalanche 2500 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Memory Seats Schematics >> Front Passenger - Full Feature Seat

Front Passenger - Full Feature Seat

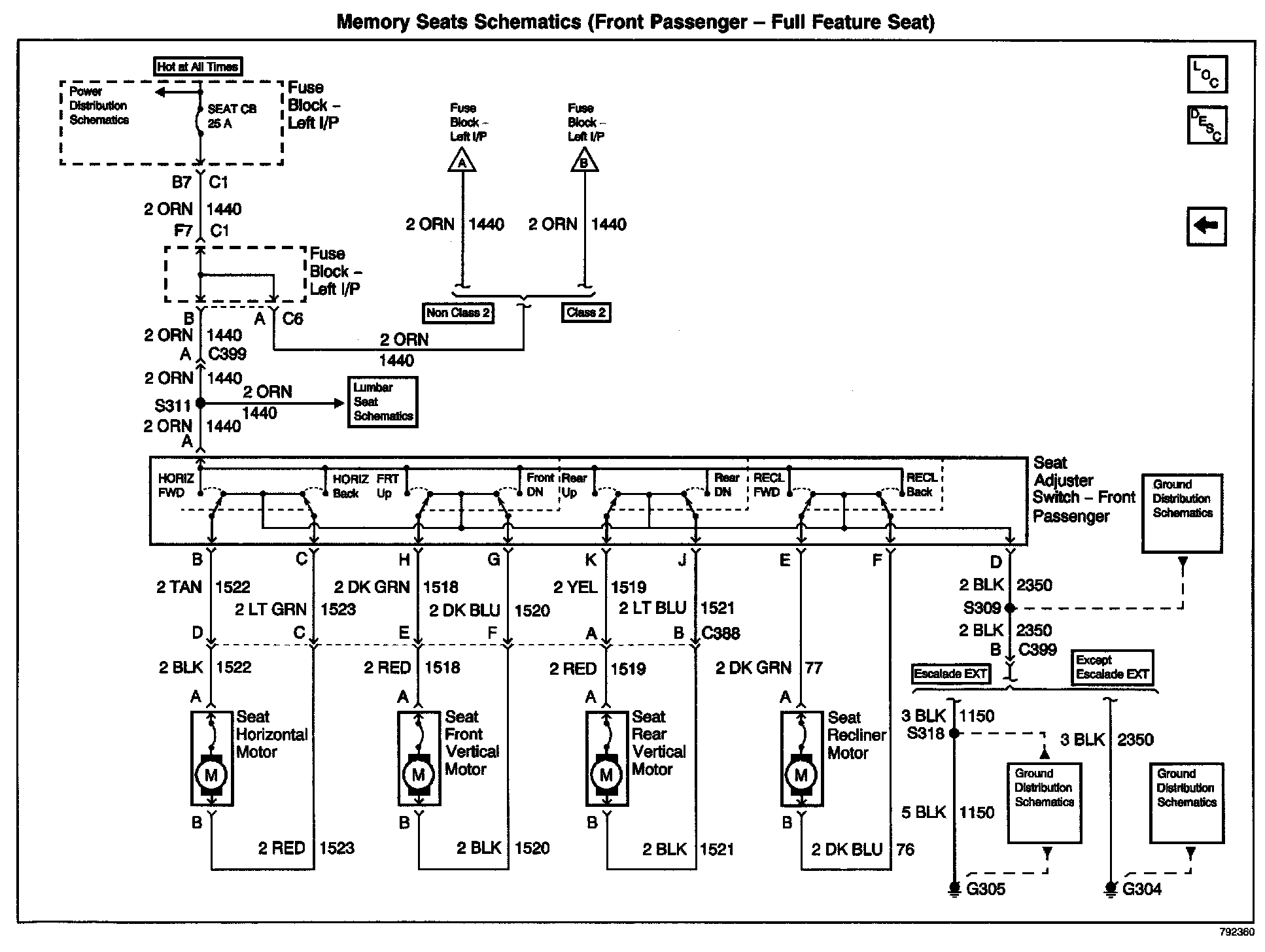

Memory Seats Schematics (Front Passenger - Full Feature Seat):
