Home
>>
Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Uplevel
Uplevel

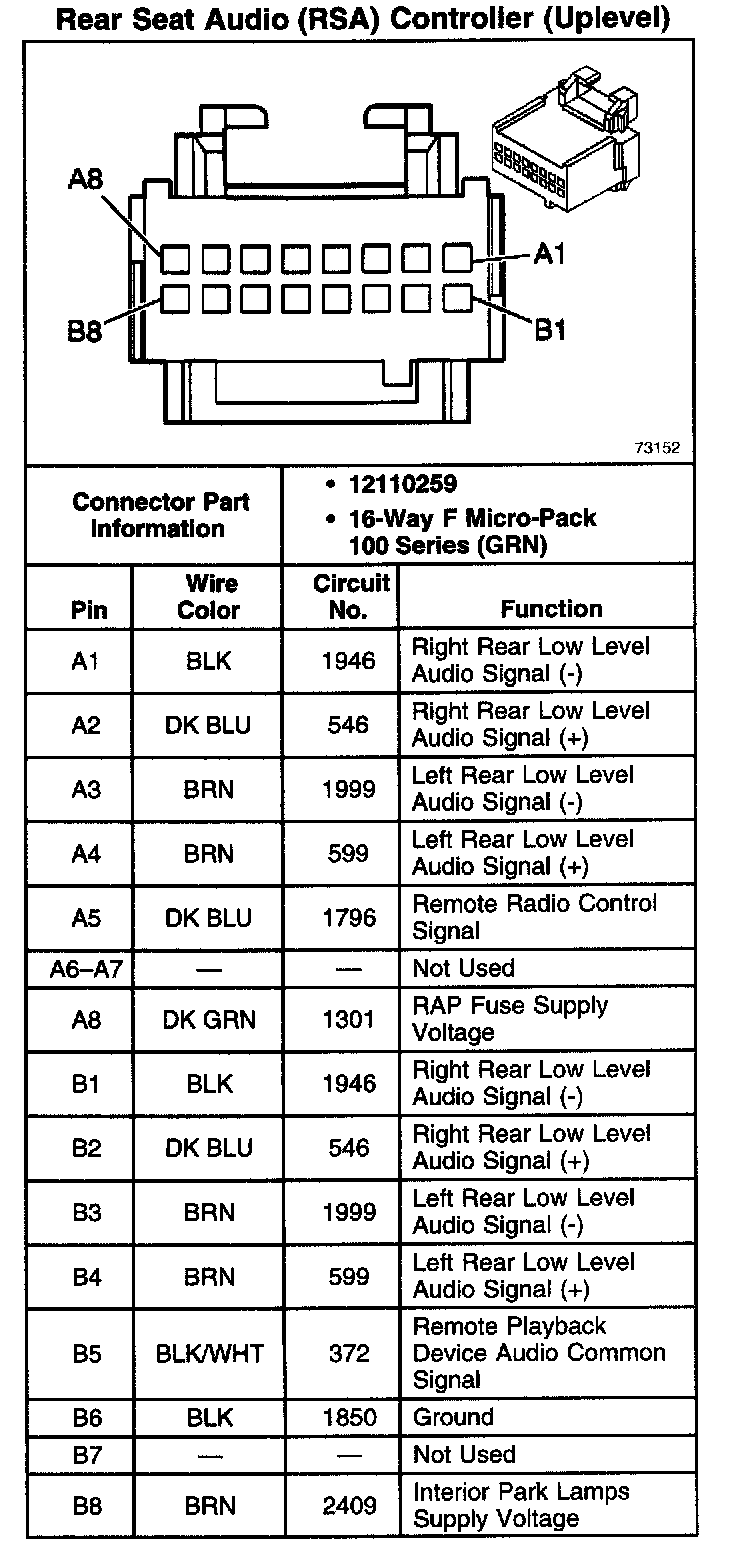

Rear Seat Audio (RSA) Controller (Uplevel):
