Home
>>
Chevy Truck
>>
2002
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C303 - C399
>>
C340
C340

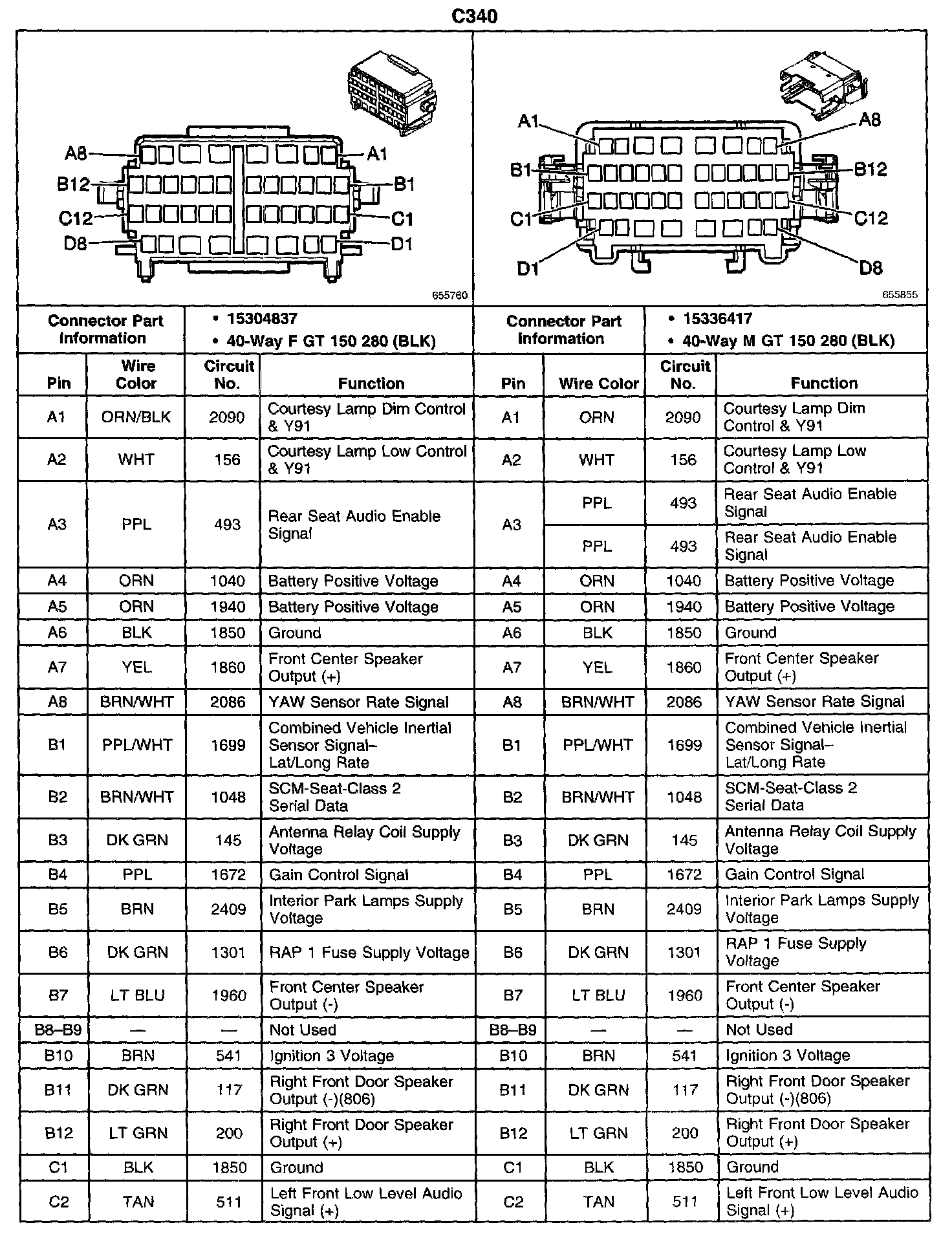

C340 Part 1:

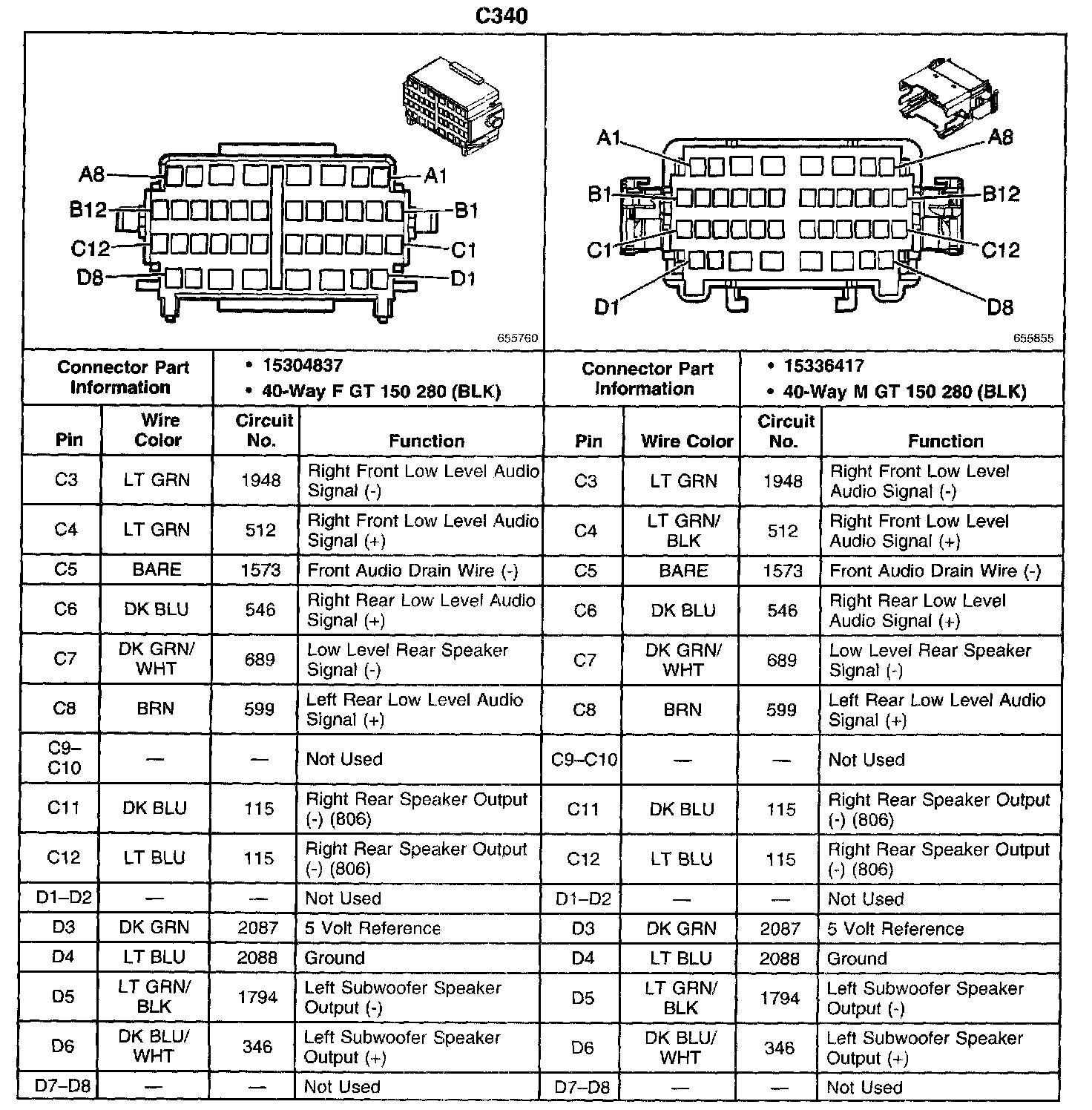

C340 Part 2:
