Fuse Block
>>
Fuse Block - Left I/P
Fuse Block - Left I/P
Fuse Block - Left I/P:

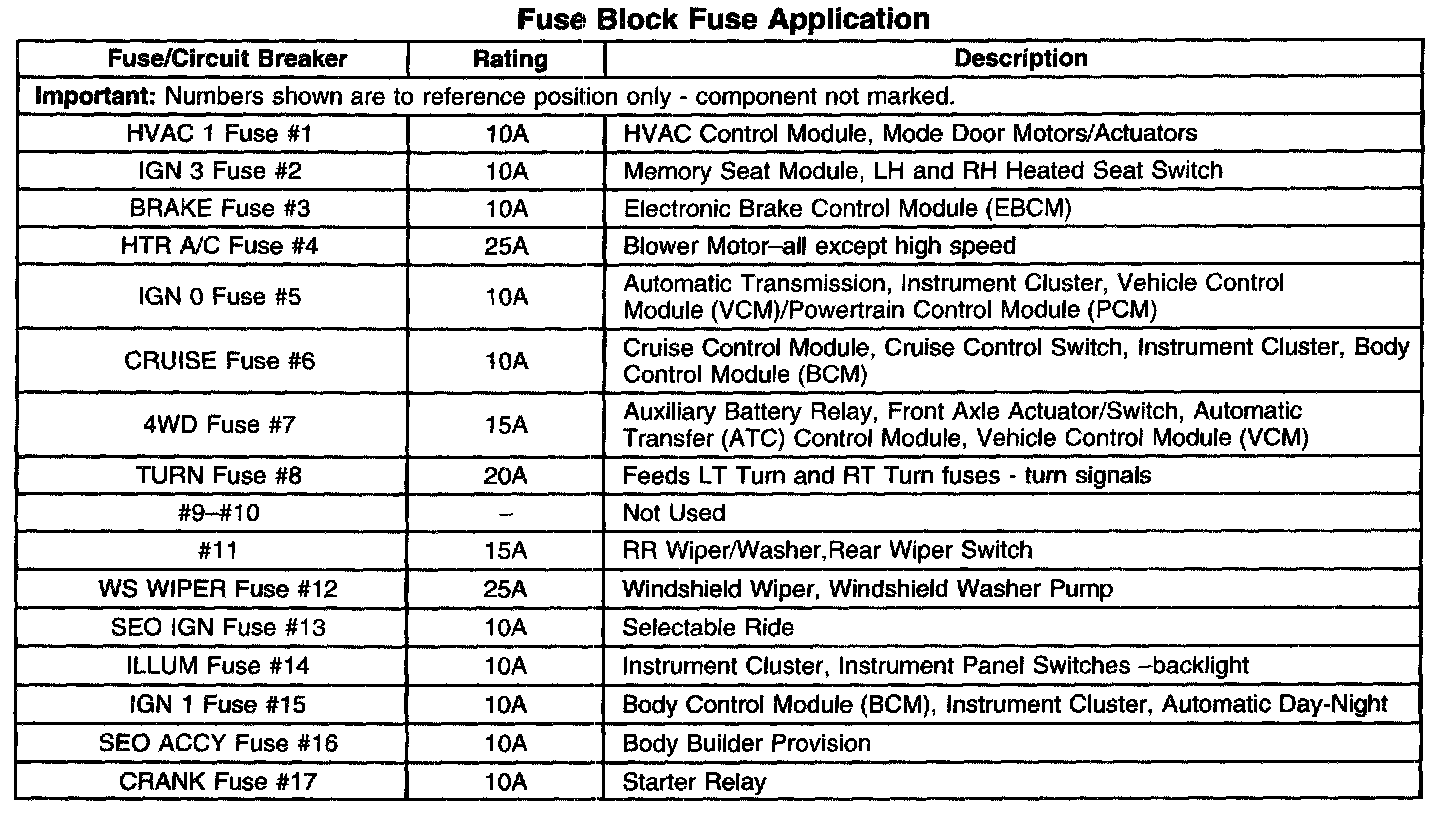

Fuse Block Fuse Applications Part 1:

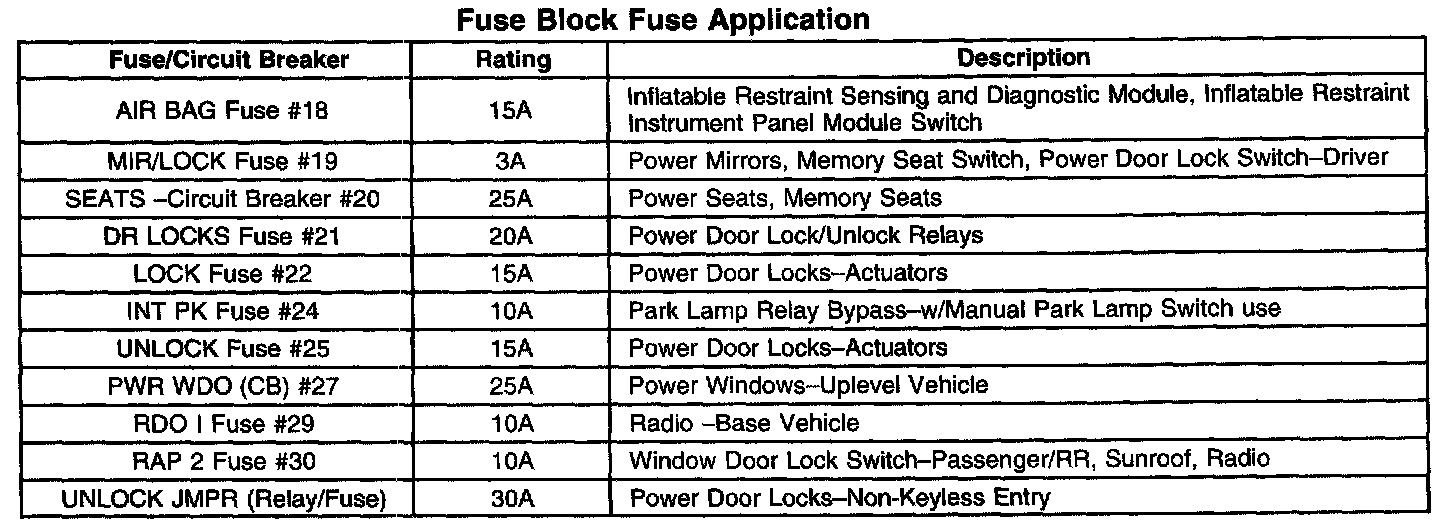

Fuse Block Fuse Applications Part 2:
