Front

REMOVAL PROCEDURE




1. Remove the seat trim panel.
2. Remove the seat cushion trim cover and pad.

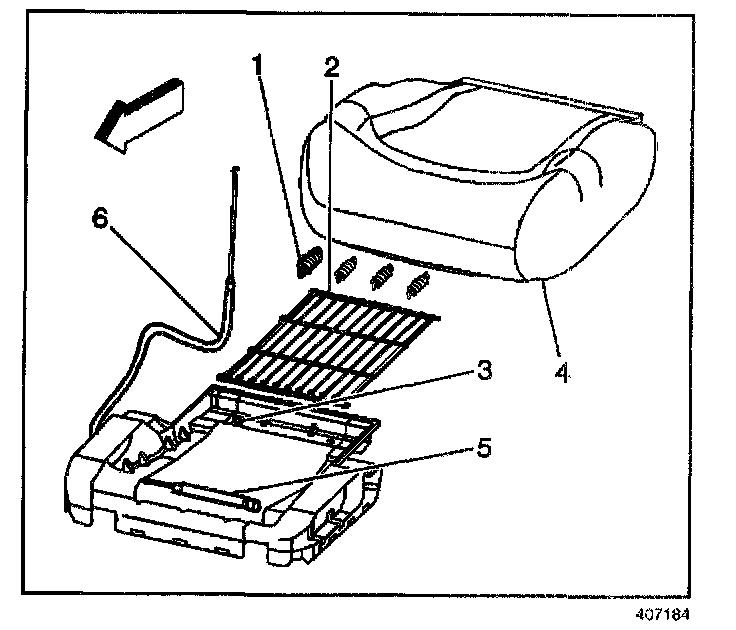

3. Remove the following components from the seat cushion frame:
^ The frame springs (1)
^ The frame suspension (2)
^ The plastic retainers (3)
4. Remove the seat cushion frame from the vehicle.

INSTALLATION PROCEDURE




1. Install the following components to the seat cushion frame:
^ The plastic retainers (3)
^ The frame suspension (2)
^ The frame springs (1)
2. Install the seat cushion trim cover and pad.
3. Install the seat trim panel.
