Memory Seat Module, Recliner M, Seat Front Vertical M, Ground

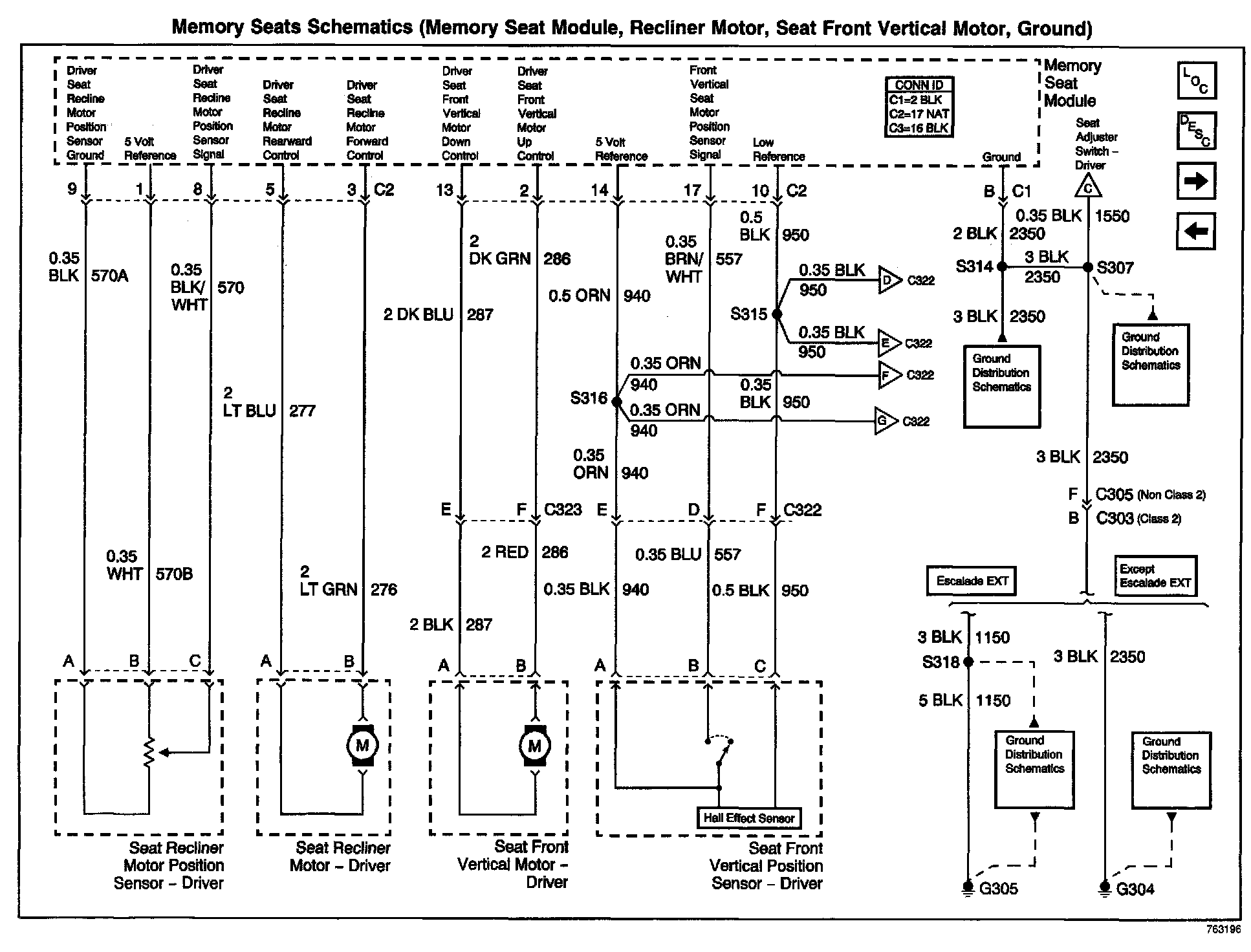

Memory Seats Schematics (Memory Seat Module, Recliner Motor, Seat Front Vertical Motor, Ground):
