Disc Brake Splash Shield Replacement - Front

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the hub and bearing assembly.

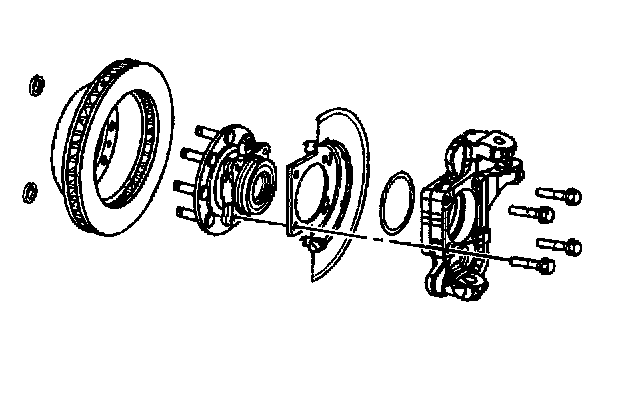

4. Remove the splash shield, for 15 series.

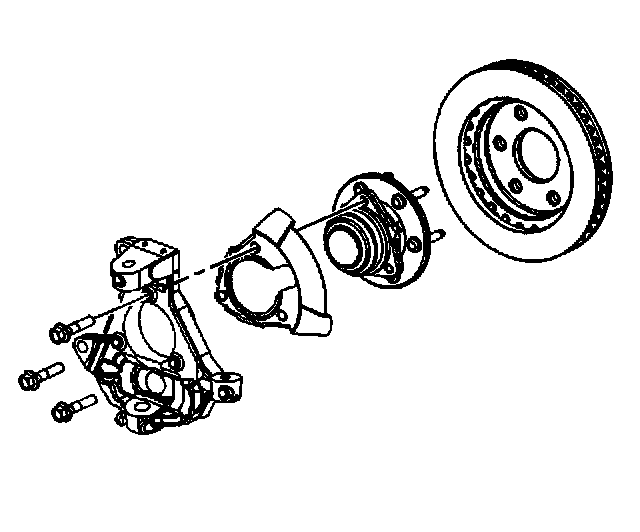

5. Remove the splash shield, for 25 series.

Installation Procedure





1. Install the splash shield, for 15 series.





2. Install the splash shield, for 25 series.
3. Install the hub and bearing assembly.
4. Install the tire and wheel assembly.
5. Remove the safety stands.
6. Lower the vehicle.
