Chevy Truck
>>
2002
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>

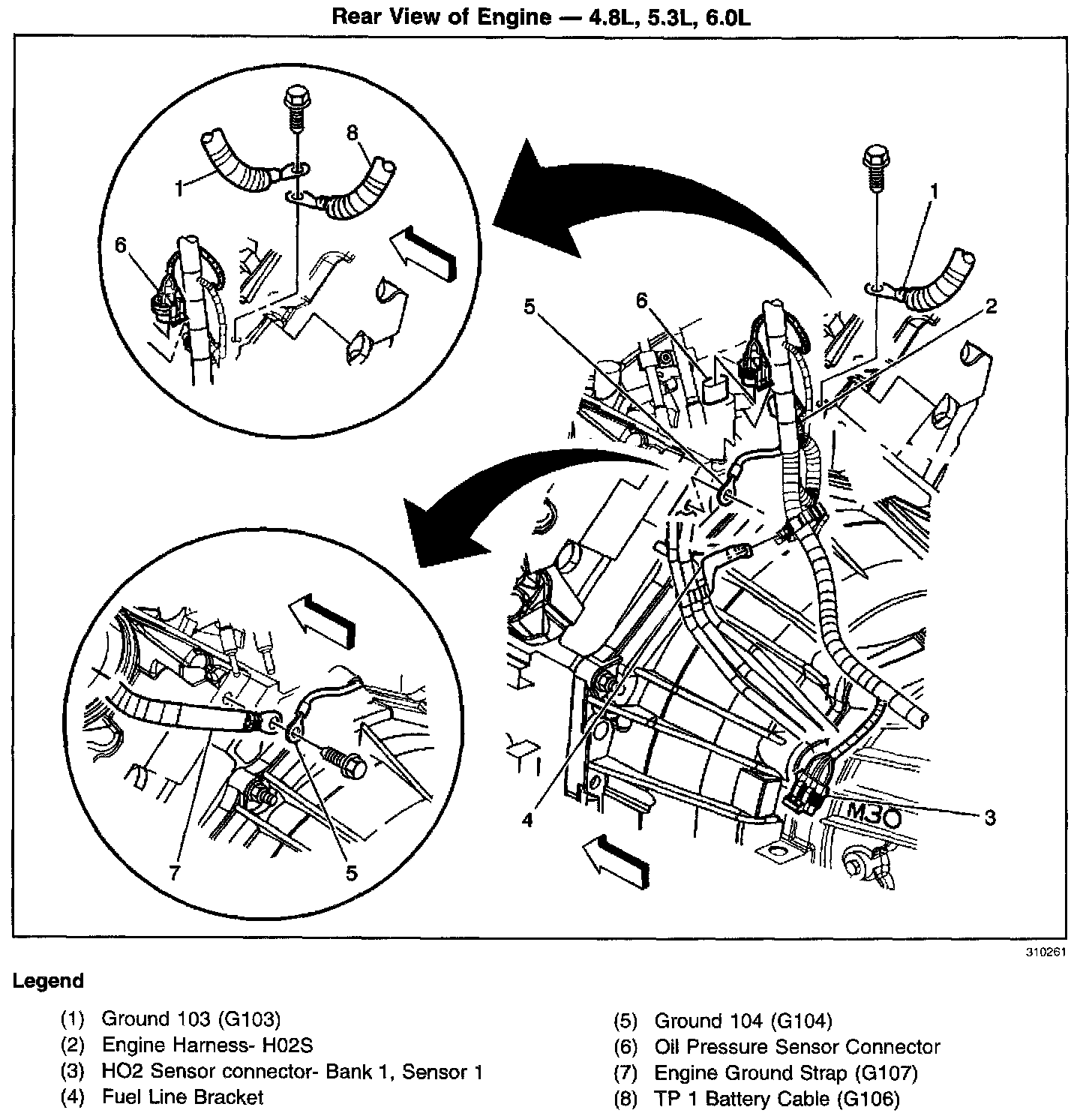

Rear View of Engine

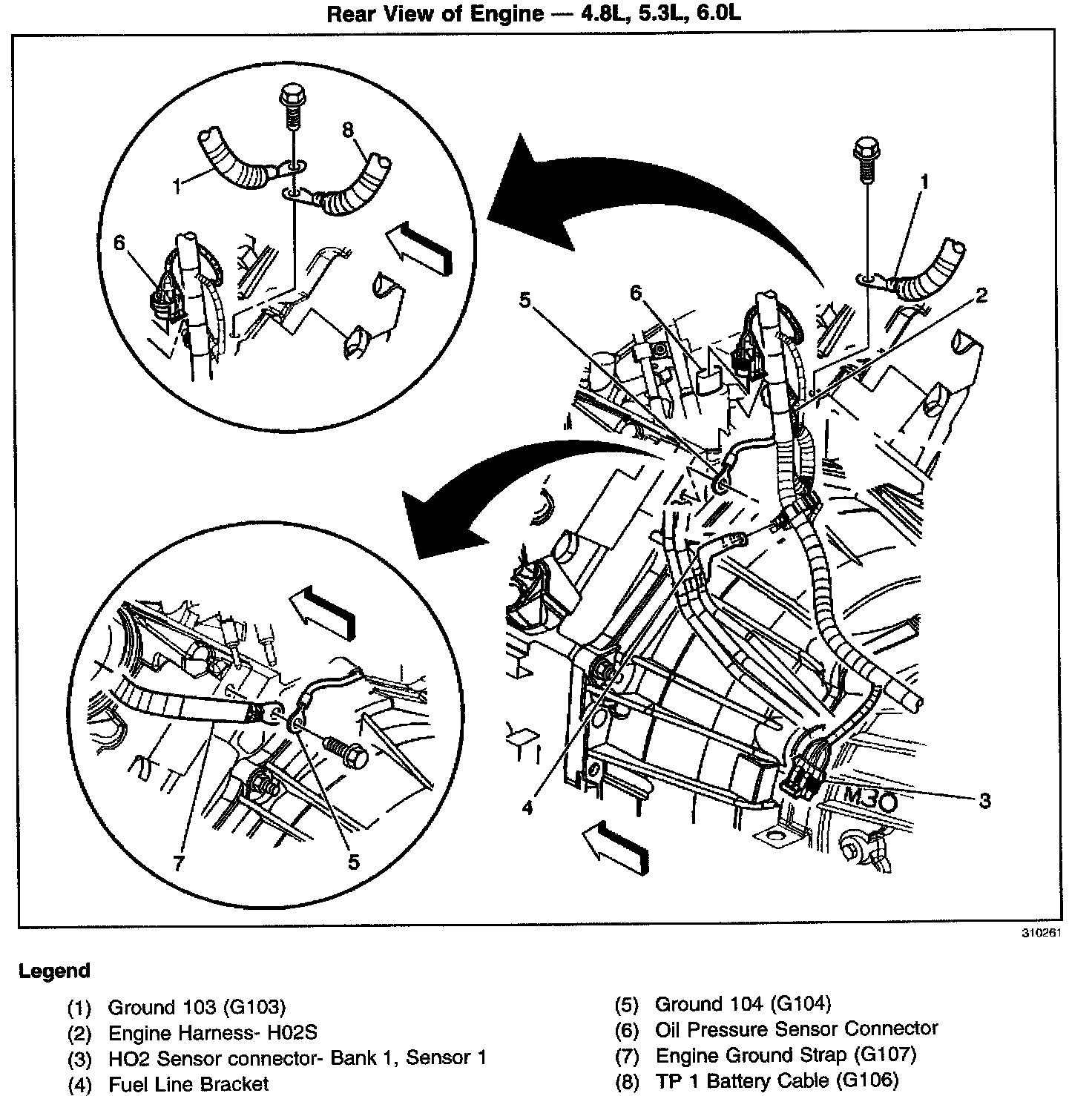

Rear View of Engine
Locations View:
Locations View:
