High Mounted Stop Lamp Replacement - 2

REMOVAL PROCEDURE




1. Ensure that the headlamp switch is in the OFF position.

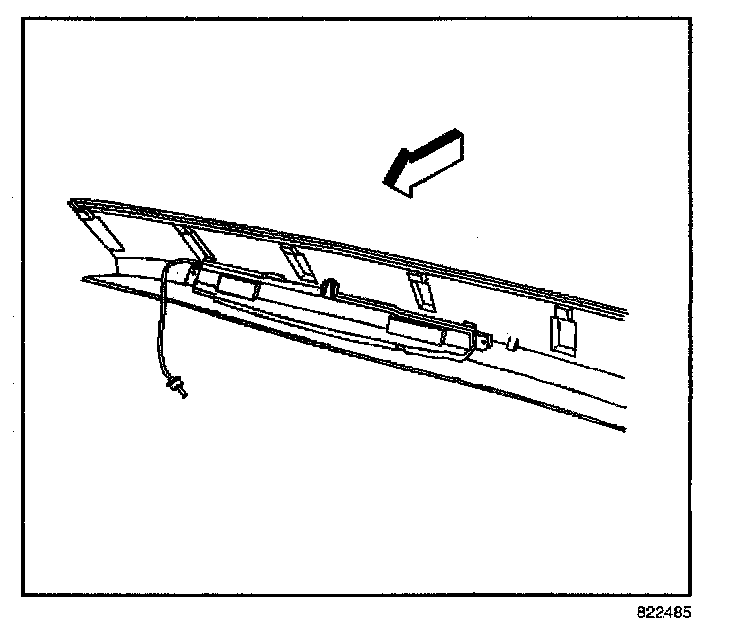

2. Remove the rear compartment cover assembly.
3. Remove the cargo box bridge center bar.
4. Remove the panel assembly from the vehicle.
5. Disconnect the Lamp Electrical connector.

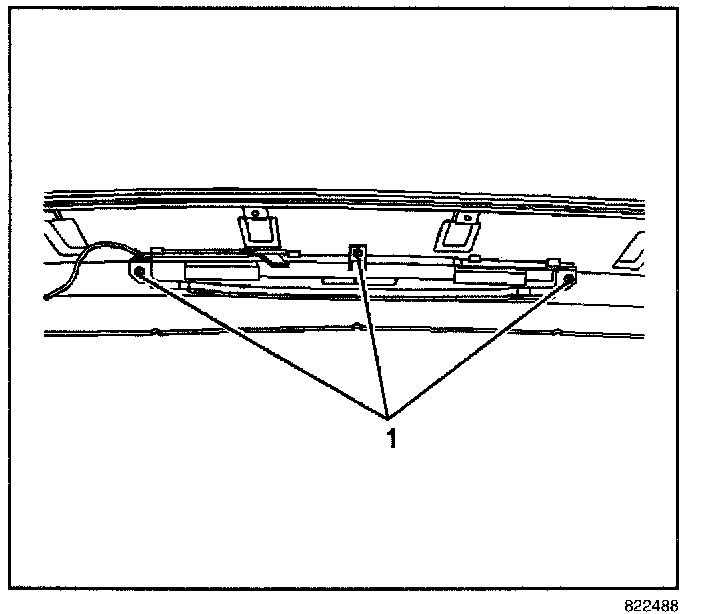

6. Remove the high mount stop lamp from the cargo bridge center bar.

INSTALLATION PROCEDURE

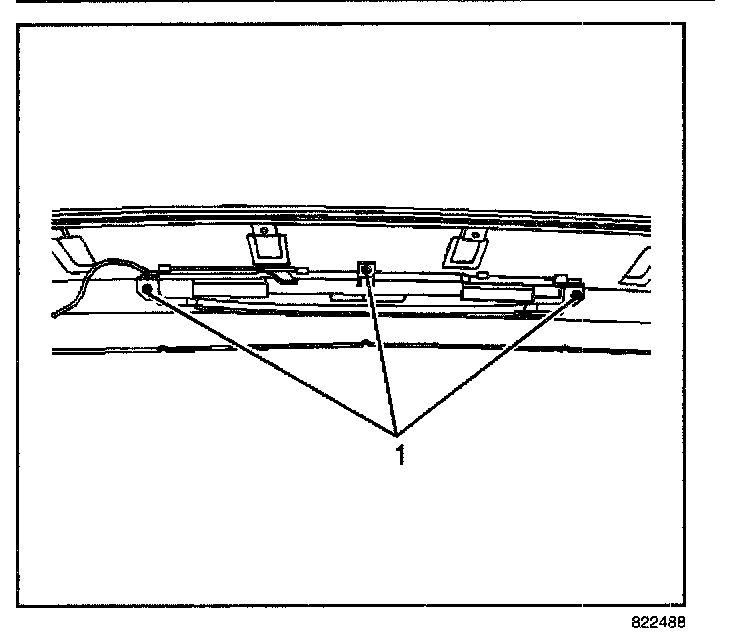

1. Install the lamp assembly to the cargo box bridge center bar.
2. Connect the electrical connector.

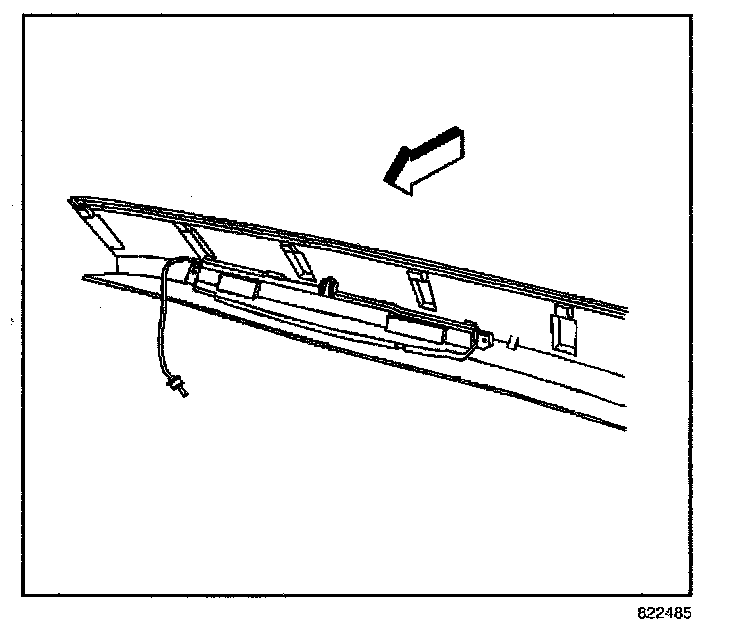

3. Install the panel assembly to the vehicle.
4. Install the Cargo Box Bridge Center Bar.
5. Inspect the operation.
6. Install the rear compartment cover assembly.
