Center Mounted Brake Lamp
>>
Diagrams
>>
Connector Views
Connector Views

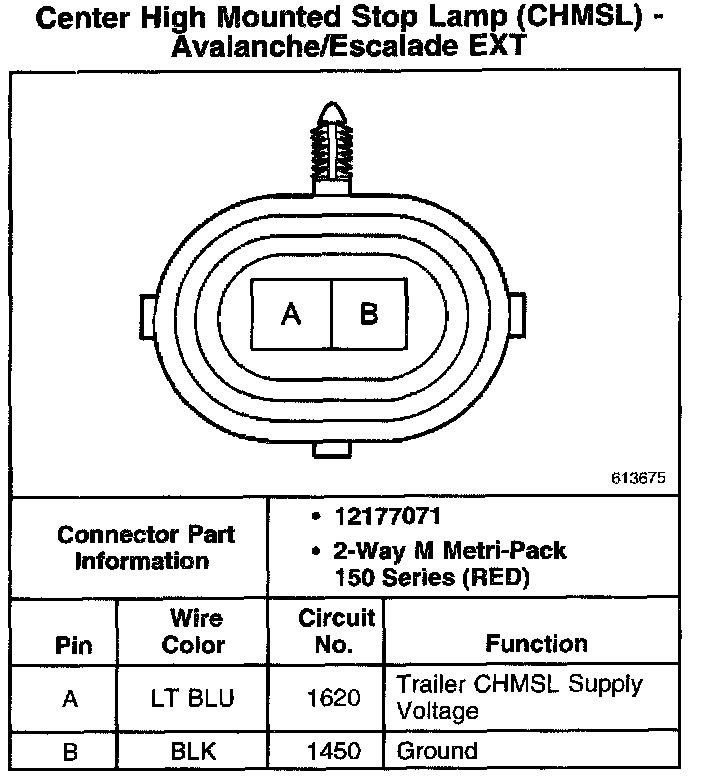

Center High Mounted Stop Lamp (CHMSL) - Avalanche/Escalade EXT:
