Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
Seat Temperature Control Module

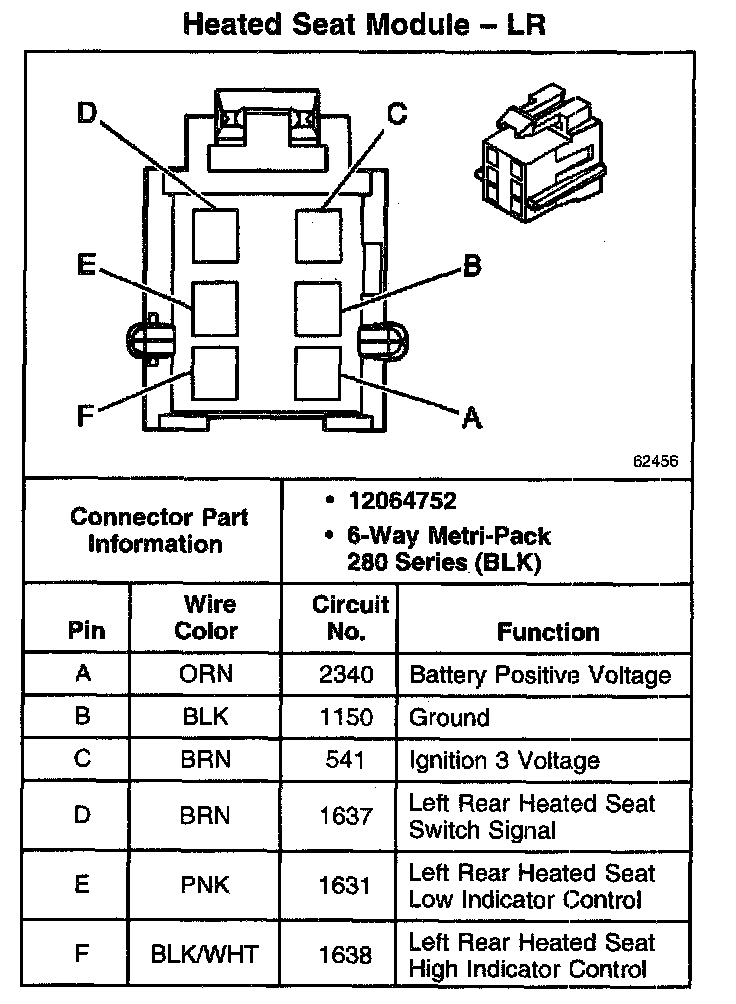

Heated Seat Module - LR:

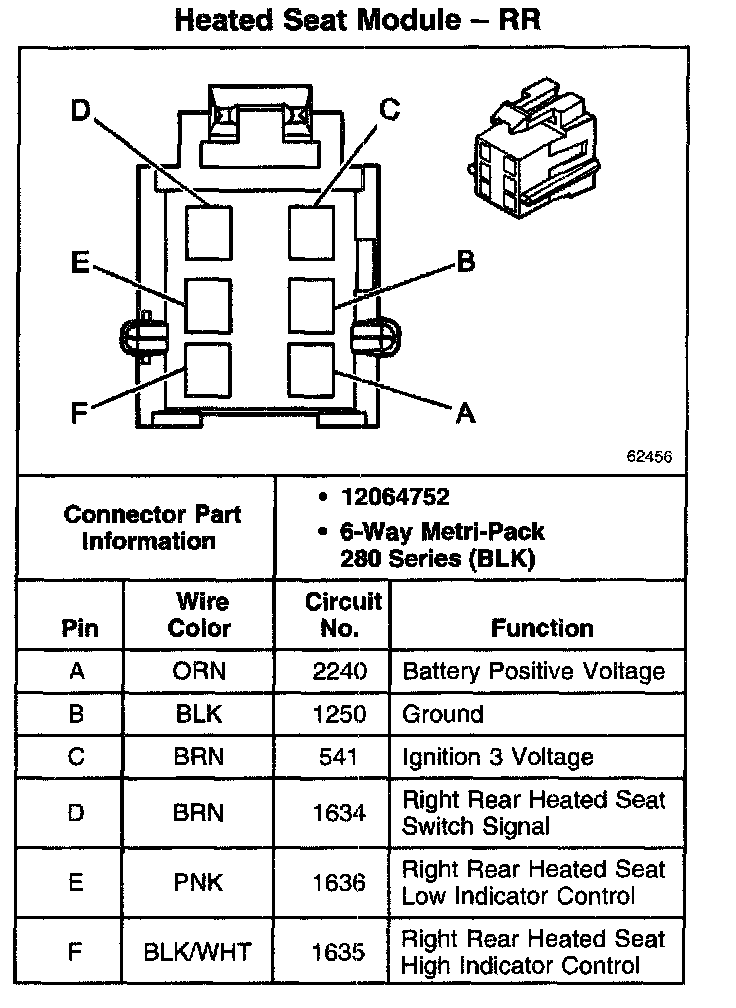

Heated Seat Module - RR:
