Chevy Truck
>>
2002
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

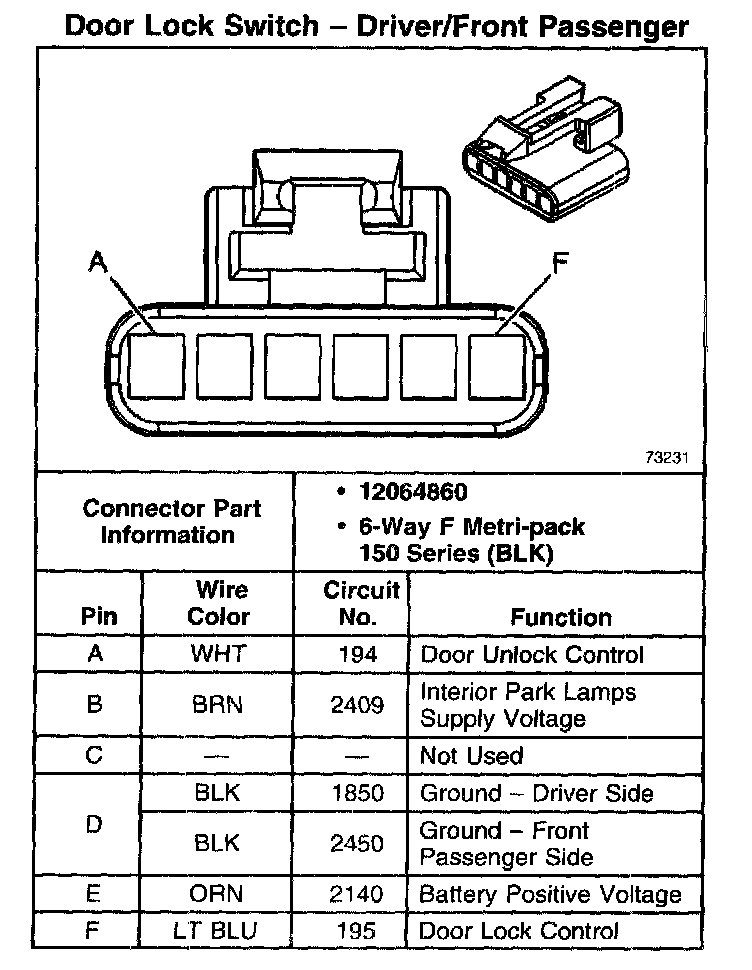

Door Lock Switch - Driver/Front Passenger
Door Lock Switch - Driver/Front Passenger
Door Lock Switch - Driver/Front Passenger:
